RECOM Power Inc recommends a PCB layout with a large copper area underneath the module to dissipate heat effectively. A minimum of 1 oz copper thickness is recommended. Additionally, thermal vias can be used to further improve heat dissipation.
The REC10K-2424SAW/H2 is designed to meet the requirements of IEC 60068-2-6, which includes vibration testing. The module can withstand vibrations up to 10Hz to 2000Hz, with an acceleration of 10m/s². However, it's recommended to consult with RECOM Power Inc application notes for specific vibration requirements.
The maximum capacitance load that can be connected to the output of the REC10K-2424SAW/H2 is 100uF. Exceeding this value may cause instability or oscillation in the output voltage.
Yes, the REC10K-2424SAW/H2 is designed and manufactured to meet the requirements of high-reliability applications, including aerospace, defense, and medical devices. The module is built with high-quality components and undergoes rigorous testing and screening to ensure its reliability.
The typical efficiency of the REC10K-2424SAW/H2 is around 85% at full load and 240VAC input. However, the efficiency may vary depending on the input voltage, output load, and operating temperature.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
REC10K-2424SAW/H2 Overview

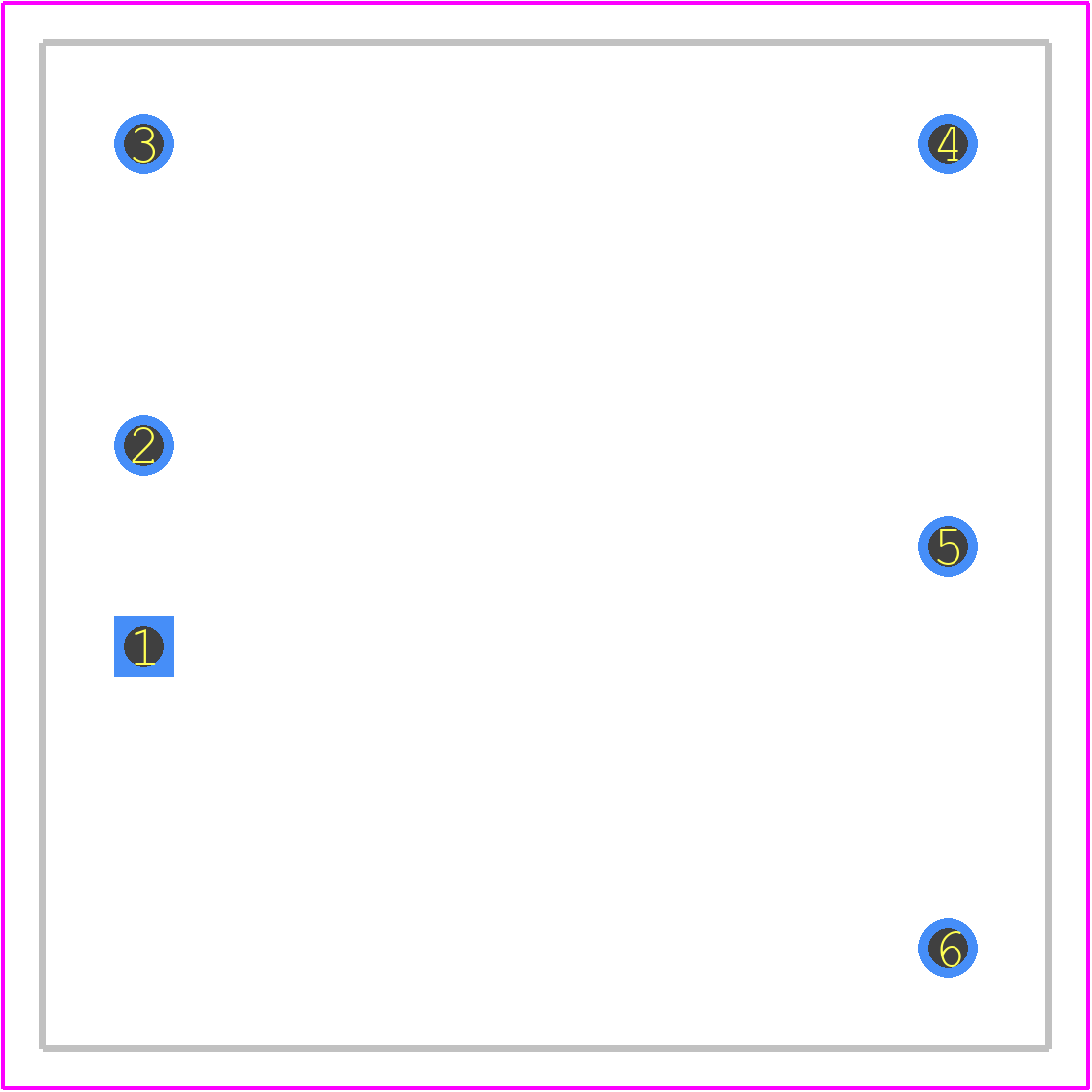

Use the download button to access the REC10K-2424SAW/H2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like REC10,
or try a keyword search, such as Power Supply Modules
