REC150H-4812SUW footprint, schematic symbol and 3D model by RECOM Power

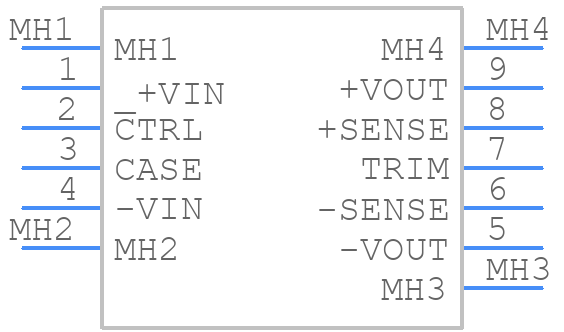

Symbol

click to zoom

PCB Footprints

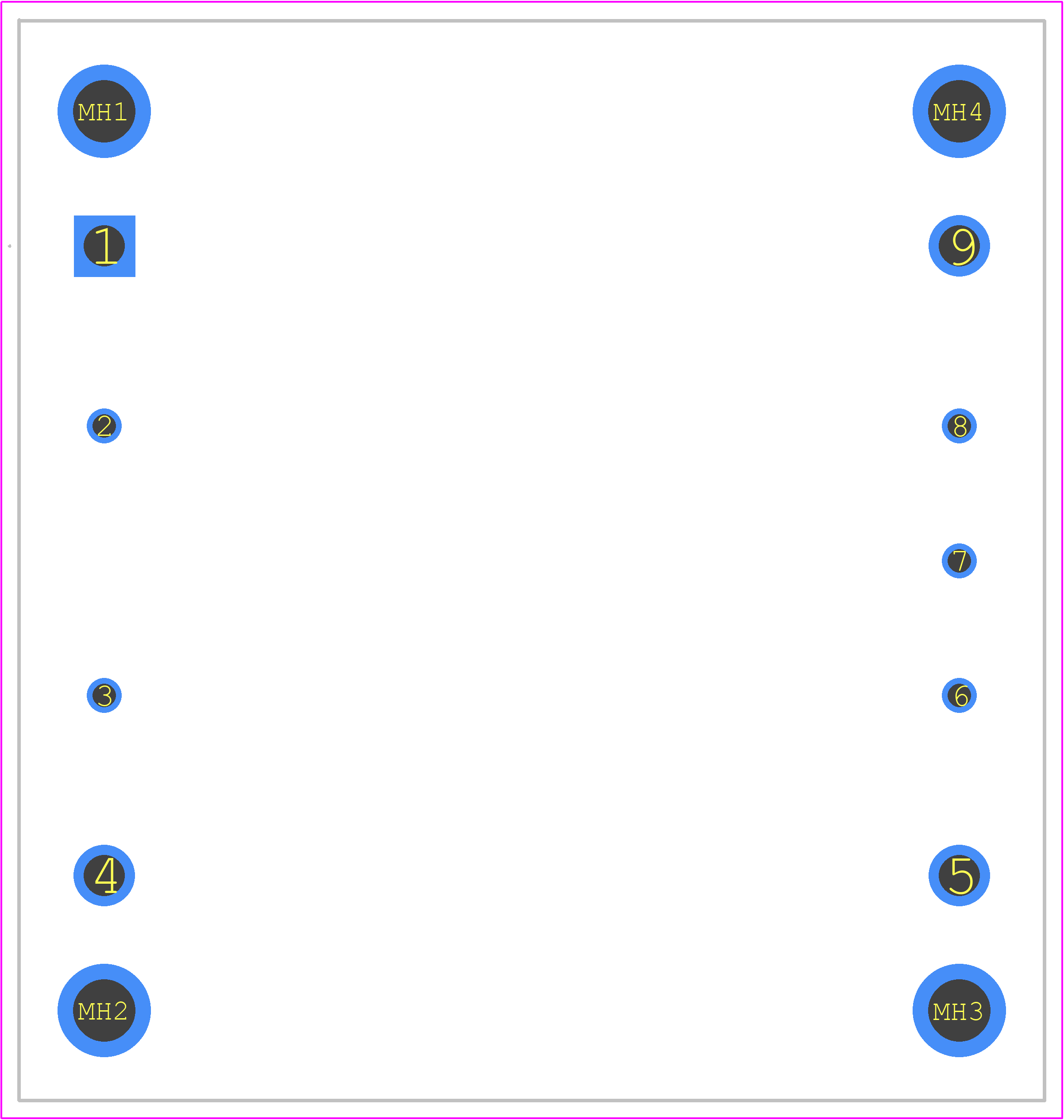

REC150H-4812SUW - RECOM Power PCB footprint - Other - Other - REC150H-4812SUW-1

click to zoom

3D Models

REC150H-4812SUW - RECOM Power - 3D model - Other - REC150H-4812SUW-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for REC150H-4812SUW
Part Number REC150H-4812SUW
Manufacturer RECOM Power
Pin Count 13
Part Category Power Supply
Package Category Other
Footprint Name Other - REC150H-4812SUW-1
Released Date Oct 22, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

REC150H-4812SUW Details

Manufacturer Part Number:
REC150H-4812SUW
Rohs Code:
Yes
Part Life Cycle Code:
Active
Reach Compliance Code:
Compliant
Country Of Origin:
Mainland China, Taiwan
ECCN Code:
EAR99
Manufacturer:
RECOM Power GmbH
YTEOL:
7
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Approvals:
EN
Efficiency (Main Output):
89.5%
Input Voltage-Max:
75 V
Input Voltage-Min:
9 V
Input Voltage-Nom:
48 V
JESD-30 Code:
R-PDMA-T9
Length:
61 mm
Line Regulation-Max:
0.2%
Load Regulation-Max:
0.5%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
9
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
12.5 A
Output Voltage-Max:
13.2 V
Output Voltage-Min:
10.8 V
Output Voltage-Nom:
12 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
DMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Protections:
OVER LOAD, OVER VOLTAGE, OVER TEMPERATURE, SHORT CIRCUIT
Ripple Voltage (Main Out):
0.03535 Vrms
Seated Height-Max:
13.2 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
7.62 mm
Terminal Position:
DUAL
Total Power Output-Max:
150 W
Trim/Adjustable Output:
YES
Warm-up Time:
0.4 s
Width:
57.9 mm

REC150H-4812SUW Frequently Asked Questions (FAQs)

RECOM Power Inc recommends a PCB layout with a large copper area for heat dissipation, and a thermal management system with a heat sink and thermal interface material to keep the junction temperature below 125°C.
The REC150H-4812SUW is certified to IEC/EN 62368-1, UL 62368-1, and CSA C22.2 No. 62368-1. However, it's essential to ensure that the entire system meets the required safety certifications. Consult with a safety expert or the manufacturer for guidance.
The maximum allowable capacitance on the output is 2200uF. Exceeding this value may cause instability or oscillation. It's recommended to consult with the manufacturer or perform thorough stability analysis for specific applications.
The REC150H-4812SUW is designed to withstand moderate vibrations. However, for high-vibration environments, it's recommended to consult with the manufacturer and perform additional testing to ensure the converter's reliability and performance.
The recommended input fuse rating is 5A slow-blow, and the type should be a fuse with a high melting integral (HMI) or a ceramic fuse. Consult with the manufacturer for specific recommendations.
