RECOM Power Inc recommends a PCB layout with a large copper area for heat dissipation, and a minimum of 2oz copper thickness. The datasheet provides a recommended layout diagram, but it's essential to consult with RECOM's application notes and FAE team for specific guidance.
To ensure reliable start-up and operation with a high-capacitance output filter, RECOM recommends using a soft-start circuit or a ramp-up circuit to limit the inrush current. Additionally, the output voltage should be monitored to prevent overshoot or voltage dips during start-up.
The maximum allowed capacitance on the output of the REC15E-4805SZ is not explicitly stated in the datasheet. However, RECOM recommends limiting the output capacitance to 10-20 times the output capacitance of the converter (Cout = 10-20 x 22uF) to ensure stable operation and prevent oscillations.
Yes, the REC15E-4805SZ can be used in a redundant or parallel configuration, but it's essential to consult with RECOM's application notes and FAE team for specific guidance on synchronization, current sharing, and fault tolerance.
RECOM recommends using a fuse with a rating of 2-3 times the maximum input current (Iin_max) and a fast-acting type (e.g., SMD fuse or ceramic fuse) to protect the converter from input overcurrent and short-circuit faults.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
REC15E-4805SZ Overview

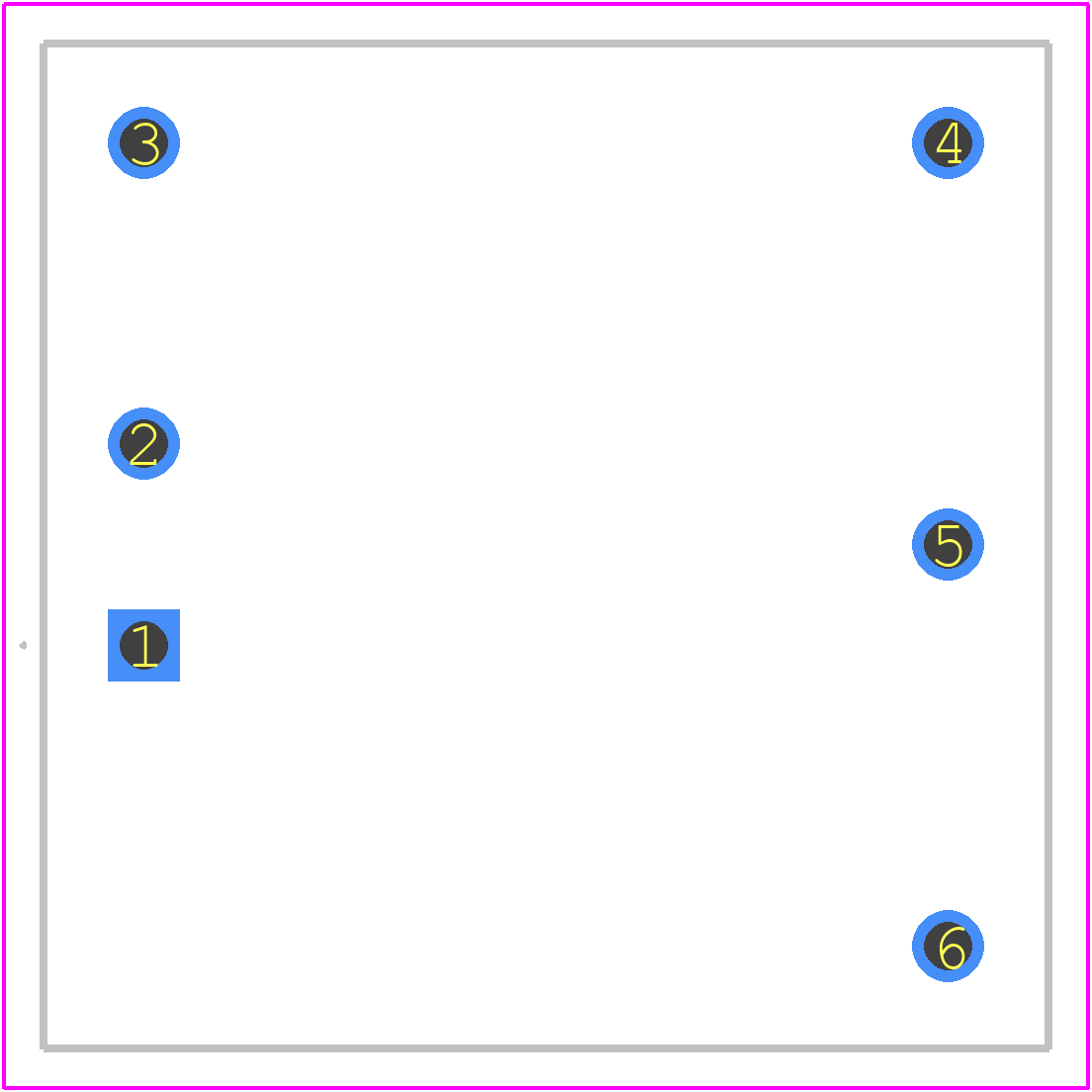

Use the download button to access the REC15E-4805SZ schematic symbol, PCB footprint, and 3D model.
