REC20K-4812SZ - RECOM Power

Description: 20W DC/DC-Converter 'ECONOLINE' 1"x1" 2kV reg 4:1

Download REC20K-4812SZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
REC20K-4812SZ - RECOM Power - PCB symbol
click to zoom

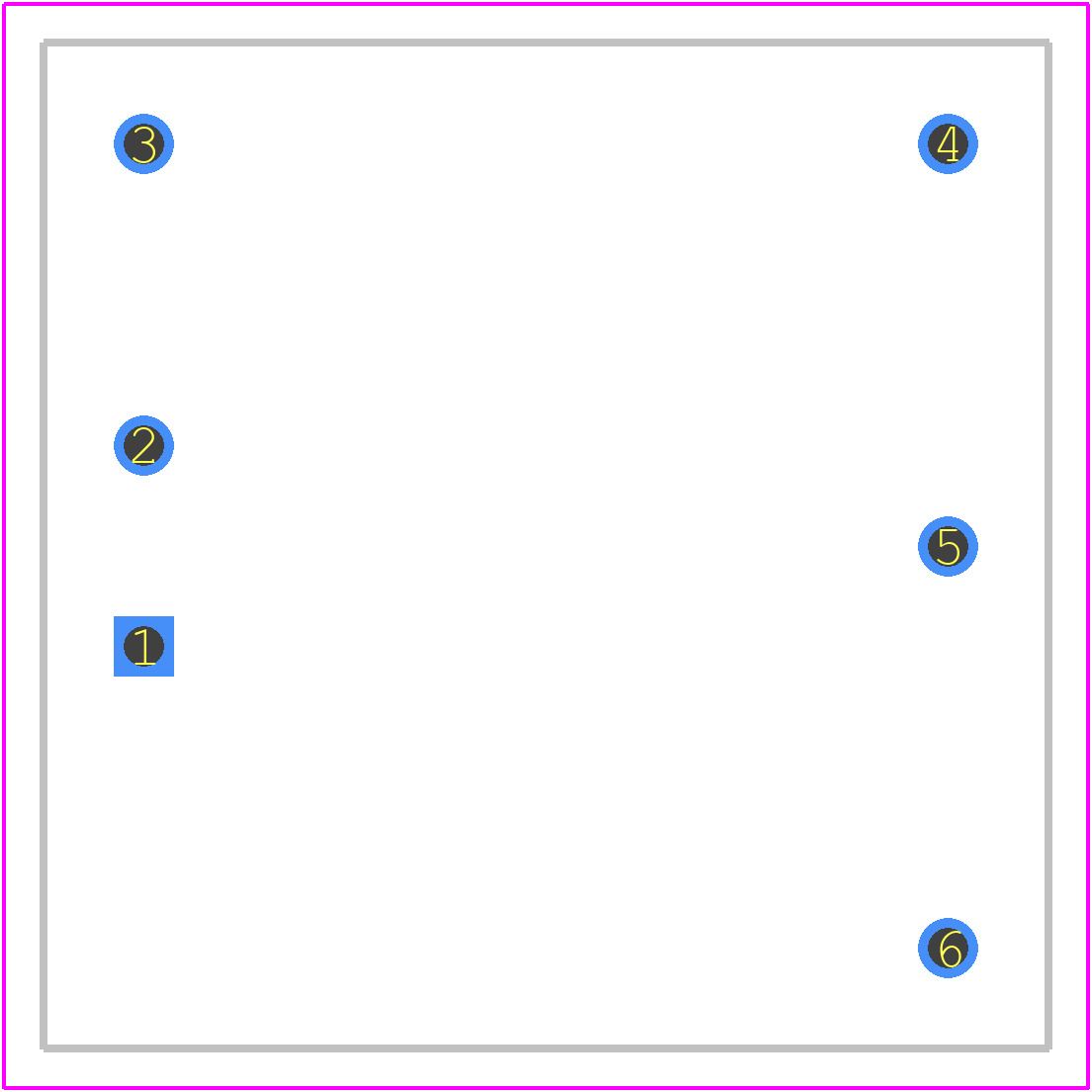

PCB Footprints
REC20K-4812SZ - RECOM Power PCB footprint - Other - Other - REC20K
click to zoom
3D Models
REC20K-4812SZ - RECOM Power - 3D model - Other - REC20K
click to zoom

REC20K-4812SZ Details

  • Manufacturer Part Number:

    REC20K-4812SZ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-6

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • Manufacturer:

    RECOM Power GmbH

  • YTEOL:

    8

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    IEC, EN, UL, CSA

  • Efficiency (Main Output):

    89%

  • Input Voltage-Max:

    75 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    48 V

  • JESD-30 Code:

    S-PDMA-P6

  • Length:

    25.4 mm

  • Line Regulation-Max:

    1%

  • Load Regulation-Max:

    1%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.667 A

  • Output Voltage-Max:

    13.2 V

  • Output Voltage-Min:

    10.8 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DMA

  • Package Shape:

    SQUARE

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Protections:

    SHORT CIRCUIT, OUTPUT OVER VOLTAGE, OUTPUT OVER CURRENT

  • Ripple Voltage (Main Out):

    0.053025 Vrms

  • Screening Level:

    IEC/EN/UL 62368-1

  • Seated Height-Max:

    10.7 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    20 W

  • Trim/Adjustable Output:

    YES

  • Warm-up Time:

    0.02 s

  • Width:

    25.4 mm

REC20K-4812SZ Frequently Asked Questions (FAQs)

  • RECOM provides a reference design and layout guidelines in their application notes and evaluation boards. It's recommended to follow these guidelines to ensure optimal thermal performance and minimize electromagnetic interference (EMI).
  • The REC20K-4812SZ is certified to various safety standards, including UL62368-1, IEC62368-1, and EN62368-1. However, the final product must still meet the relevant safety certifications. Ensure that your design meets the necessary safety requirements and consult with RECOM or a certified test house for guidance.
  • RECOM recommends using a low-ESR ceramic capacitor with a value of 10-22uF, depending on the input voltage and ripple requirements. The capacitor should be rated for the maximum input voltage and meet the necessary safety certifications.
  • RECOM provides a troubleshooting guide in their application notes, which covers common issues and their solutions. Additionally, consult the datasheet and contact RECOM's technical support for further assistance.
  • The maximum allowed output capacitance is not explicitly stated in the datasheet. However, as a general rule, the output capacitance should be limited to 10-20 times the output filter capacitance (Cout) recommended in the datasheet. Excessive output capacitance can affect the converter's stability and performance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

REC20K-4812SZ Overview

Use the download button to access the REC20K-4812SZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like REC20, or try a keyword search, such as Power Supply Modules
