REF01CN8#PBF - Analog Devices

Description: Series Voltage Reference IC Fixed 10V V ±1% 20 mA 8-PDIP

Download REF01CN8#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

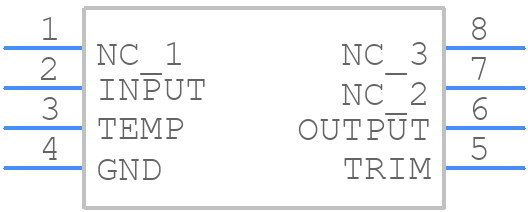

Symbol
REF01CN8#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
REF01CN8#PBF - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N8 Package 8-Lead PDIP (Narrow .300 Inch)
click to zoom
3D Models
REF01CN8#PBF - Analog Devices - 3D model - Dual-In-Line Packages - N8 Package 8-Lead PDIP (Narrow .300 Inch)
click to zoom

REF01CN8#PBF Details

  • Manufacturer Part Number:

    REF01CN8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.300 INCH, LEAD FREE, PLASTIC, DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1510 (N8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    OUTPUT VOLTAGE CAN BE ADJUSTED OVER A 3 PERCENT RANGE

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    10.16 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Voltage-Max:

    10.1 V

  • Output Voltage-Min:

    9.9 V

  • Output Voltage-Nom:

    10 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    245

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.937 mm

  • Supply Voltage-Max (Vsup):

    40 V

  • Supply Voltage-Min (Vsup):

    13 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Temp Coef of Voltage-Max:

    65 ppm/°C

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    YES

  • Width:

    7.62 mm

REF01CN8#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for REF01CN8#PBF involves keeping the input and output traces separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a Kelvin connection for the output voltage sense pins to minimize noise.
  • To ensure stability, make sure to follow the recommended capacitor values and placement in the datasheet. Additionally, use a low-ESR capacitor for the output capacitor, and avoid using capacitors with high inductance. Also, ensure that the input voltage is within the recommended range and that the device is properly decoupled.
  • Although the datasheet specifies an absolute maximum input voltage of 18V, it's recommended to operate the device within the recommended input voltage range of 4.5V to 15V to ensure optimal performance and reliability.
  • Yes, REF01CN8#PBF is rated for operation up to 125°C. However, it's essential to ensure that the device is properly derated for temperature, and that the maximum junction temperature is not exceeded. Additionally, consider the thermal resistance of the package and the PCB when designing for high-temperature operation.
  • The output voltage tolerance of REF01CN8#PBF is specified as ±0.05% over the operating temperature range. To calculate the output voltage tolerance, multiply the nominal output voltage (2.048V) by the tolerance percentage (0.05%). This gives you a tolerance range of ±1.024mV.
