REF192GPZ - Analog Devices

Description: REF192GPZ, Voltage Reference 2.5V 2mV 30mA 18 V max. 8-Pin PDIP

Download REF192GPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

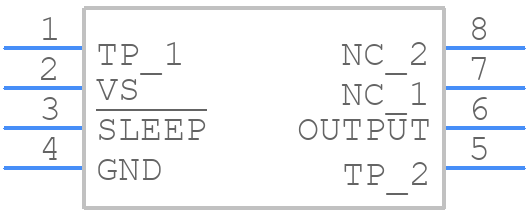

Symbol
REF192GPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
REF192GPZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - . 8-Lead Plastic Dual In-Line Package [PDIP] Narrow Body (N-8
click to zoom
3D Models
REF192GPZ - Analog Devices - 3D model - Dual-In-Line Packages - . 8-Lead Plastic Dual In-Line Package [PDIP] Narrow Body (N-8
click to zoom

REF192GPZ Details

  • Manufacturer Part Number:

    REF192GPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    ROHS COMPLIANT, PLASTIC, MS-001BA, DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    N-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.27 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    2.51 V

  • Output Voltage-Min:

    2.49 V

  • Output Voltage-Nom:

    2.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Supply Current-Max (Isup):

    0.045 mA

  • Supply Voltage-Max (Vsup):

    15 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temp Coef of Voltage-Max:

    25 ppm/°C

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Trim/Adjustable Output:

    NO

  • Voltage Tolerance-Max:

    0.4%

  • Width:

    7.62 mm

REF192GPZ Frequently Asked Questions (FAQs)

  • The recommended output capacitor value is 10uF to 22uF, but it can be adjusted based on the specific application and noise requirements.
  • To ensure stability and accuracy, make sure to follow proper PCB layout guidelines, decouple the input and output pins, and use a low-ESR output capacitor. Also, ensure the input voltage is within the recommended range and the device is operated within its specified temperature range.
  • The REF192GPZ is rated for operation up to 125°C, but its accuracy and stability may degrade at higher temperatures. If your application requires high-temperature operation, consider using a more temperature-stable voltage reference or taking additional measures to mitigate temperature effects.
  • To minimize noise and ripple, use a low-ESR output capacitor, decouple the input and output pins, and ensure good PCB layout practices. Additionally, consider adding a noise-reducing filter or using a voltage reference with built-in noise reduction features.
  • Yes, the REF192GPZ can be used as a reference for an ADC or DAC. However, ensure the REF192GPZ output voltage is within the ADC or DAC's specified reference voltage range, and consider the REF192GPZ's noise and temperature characteristics when selecting a reference voltage for your application.
