REF195GRUZ - Analog Devices

Description: V-Ref Precision 5V 30mA 8-Pin TSSOP

Download REF195GRUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

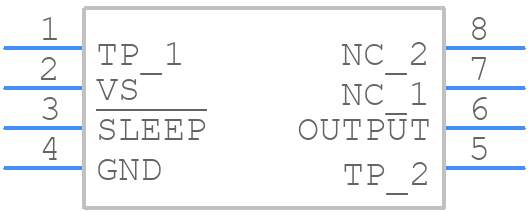

REF195GRUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
REF195GRUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-8(TSSOP)
click to zoom
3D Models
REF195GRUZ - Analog Devices - 3D model - Small Outline Packages - RU-8(TSSOP)
click to zoom

REF195GRUZ Details

  • Manufacturer Part Number:

    REF195GRUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-153AA, TSSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RU-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    5.01 V

  • Output Voltage-Min:

    4.99 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    0.045 mA

  • Supply Voltage-Max (Vsup):

    15 V

  • Supply Voltage-Min (Vsup):

    5.1 V

  • Supply Voltage-Nom (Vsup):

    5.1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temp Coef of Voltage-Max:

    25 ppm/°C

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Trim/Adjustable Output:

    NO

  • Voltage Tolerance-Max:

    0.2%

  • Width:

    3 mm

REF195GRUZ Frequently Asked Questions (FAQs)

  • The REF195GRUZ should be placed close to the analog-to-digital converter (ADC) or digital-to-analog converter (DAC) it is referencing, and the input and output pins should be routed away from noisy digital signals. A low-impedance, low-inductance path should be used to connect the REF195GRUZ to the ADC or DAC. Additionally, a 0.1uF ceramic capacitor should be placed as close as possible to the REF195GRUZ to filter out high-frequency noise.
  • The REF195GRUZ has a built-in power-on reset (POR) circuit that ensures the output voltage is stable and accurate during power-up sequences. During power-down sequences, the REF195GRUZ output voltage will decay slowly to prevent any voltage spikes or glitches that could affect the system.
  • The REF195GRUZ has a temperature coefficient of ±10ppm/°C, which means that the output voltage will change by ±10ppm for every 1°C change in temperature. However, the REF195GRUZ is designed to maintain its accuracy and stability over the entire operating temperature range of -40°C to +125°C.
  • Yes, the REF195GRUZ is suitable for use as a voltage reference for high-speed data converters. It has a low noise floor and a high power supply rejection ratio (PSRR), making it ideal for high-speed applications. However, the REF195GRUZ should be decoupled with a 0.1uF ceramic capacitor to filter out high-frequency noise.
  • The REF195GRUZ has a high level of immunity to EMI and RFI due to its internal shielding and guard rings. However, it is still recommended to use proper PCB layout and shielding techniques to minimize the impact of EMI and RFI on the REF195GRUZ.
