REF196GRUZ-REEL7 - Analog Devices

Description: LDO Voltage Reference 3.3V TSSOP8

Download REF196GRUZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

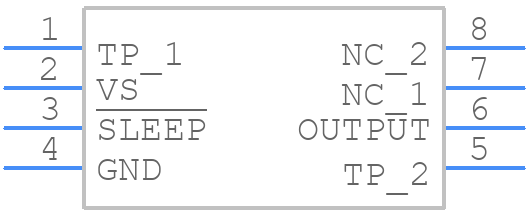

Symbol
REF196GRUZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
REF196GRUZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP
click to zoom
3D Models
REF196GRUZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - TSSOP
click to zoom

REF196GRUZ-REEL7 Details

  • Manufacturer Part Number:

    REF196GRUZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-153AA, TSSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RU-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    3.31 V

  • Output Voltage-Min:

    3.29 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    15 V

  • Supply Voltage-Min (Vsup):

    3.5 V

  • Supply Voltage-Nom (Vsup):

    3.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temp Coef of Voltage-Max:

    25 ppm/°C

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Trim/Adjustable Output:

    NO

  • Voltage Tolerance-Max:

    0.3%

  • Width:

    3 mm

REF196GRUZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the REF196GRUZ-REEL7 involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a low-ESR capacitor for decoupling.
  • To ensure stability, make sure to follow the recommended PCB layout, use a low-ESR capacitor for decoupling, and avoid using long traces or wires that can introduce noise and instability. Also, ensure that the input and output capacitors are properly sized and placed.
  • The REF196GRUZ-REEL7 has an operating temperature range of -40°C to +125°C. However, it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
  • Yes, the REF196GRUZ-REEL7 is suitable for high-reliability and aerospace applications. It's built with high-quality materials and has undergone rigorous testing to ensure its reliability and performance in harsh environments.
  • To handle ESD protection for the REF196GRUZ-REEL7, use ESD-sensitive handling procedures, such as using an anti-static wrist strap or mat, and storing the device in an anti-static bag or container. Additionally, ensure that the PCB design includes ESD protection components, such as TVS diodes or ESD protection arrays.
