REF198ESZ - Analog Devices

Description: REF198ESZ, Precision Voltage Reference 4.094 to 4.098V, 2mV 30mA 18V max. 8-Pin SOIC

Download REF198ESZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

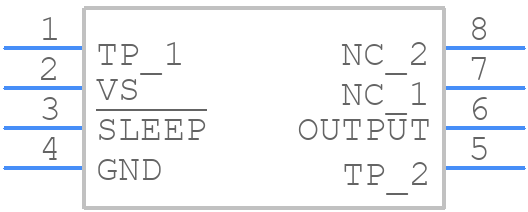

REF198ESZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
REF198ESZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - . 8-Lead Standard Small Outline Package [SOIC_N]
click to zoom
3D Models
REF198ESZ - Analog Devices - 3D model - Small Outline Packages - . 8-Lead Standard Small Outline Package [SOIC_N]
click to zoom

REF198ESZ Details

  • Manufacturer Part Number:

    REF198ESZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, MS-012AA, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    4.098 V

  • Output Voltage-Min:

    4.094 V

  • Output Voltage-Nom:

    4.096 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    15 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temp Coef of Voltage-Max:

    5 ppm/°C

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Trim/Adjustable Output:

    NO

  • Voltage Tolerance-Max:

    0.05%

  • Width:

    3.9 mm

REF198ESZ Frequently Asked Questions (FAQs)

  • The REF198ESZ is a sensitive device and requires careful layout and placement to minimize noise and ensure accurate performance. It's recommended to place the device close to the analog-to-digital converter (ADC) or digital-to-analog converter (DAC), and to use a solid ground plane to reduce noise. Additionally, it's essential to keep the device away from high-current or high-frequency signals.
  • The REF198ESZ has a relatively high output voltage noise of 100 μVpp. To minimize the impact of this noise, it's recommended to use a low-pass filter or a capacitor in parallel with the output to reduce the noise. Additionally, using a voltage regulator with a low noise output can also help to reduce the overall system noise.
  • The REF198ESZ has a recommended input voltage range of 4.5 V to 18 V. Operating the device outside of this range may affect its performance and accuracy. It's essential to ensure that the input voltage is within the recommended range to ensure accurate voltage reference output.
  • The REF198ESZ is a precision voltage reference device, and its long-term stability is critical. To ensure long-term stability, it's recommended to operate the device within the recommended temperature range, avoid exposing it to extreme temperatures, and minimize power cycling. Additionally, using a high-quality capacitor with low equivalent series resistance (ESR) can help to reduce noise and ensure stable operation.
  • The REF198ESZ is rated for operation up to 125°C, but its performance may degrade at high temperatures. If you need to operate the device in a high-temperature environment, it's recommended to derate the device's performance and consider using a thermally enhanced package or a heat sink to reduce the junction temperature.
