REF198FSZ - Analog Devices

Description: V-Ref Precision 4.096V 30mA 8-Pin SOIC

Download REF198FSZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

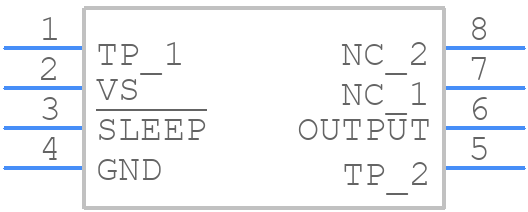

Symbol
REF198FSZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
REF198FSZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - - [SOIC_N]-
click to zoom
3D Models
REF198FSZ - Analog Devices - 3D model - Small Outline Packages - - [SOIC_N]-
click to zoom

REF198FSZ Details

  • Manufacturer Part Number:

    REF198FSZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, MS-012AA, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    4.101 V

  • Output Voltage-Min:

    4.091 V

  • Output Voltage-Nom:

    4.096 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.045 mA

  • Supply Voltage-Max (Vsup):

    15 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temp Coef of Voltage-Max:

    10 ppm/°C

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    NO

  • Voltage Tolerance-Max:

    0.12%

  • Width:

    3.9 mm

REF198FSZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the REF198FSZ involves keeping the device away from high-current carrying traces, using a solid ground plane, and minimizing the distance between the device and the decoupling capacitors. Additionally, it's recommended to use a star-ground configuration and to avoid routing digital signals near the device.
  • To ensure proper decoupling, use a 10uF ceramic capacitor with a low ESR (Equivalent Series Resistance) between the VOUT pin and the GND pin, and place it as close to the device as possible. Additionally, use a 1uF ceramic capacitor between the VIN pin and the GND pin to filter the input voltage.
  • The maximum allowed voltage drop between the input and output of the REF198FSZ is 200mV. Exceeding this voltage drop may affect the device's accuracy and stability.
  • To handle thermal considerations, ensure good airflow around the device, use a heat sink if necessary, and avoid mounting the device near heat sources. The REF198FSZ has a thermal shutdown feature that activates when the junction temperature exceeds 150°C, but it's still important to follow proper thermal design practices.
  • The recommended input voltage range for the REF198FSZ is 4.5V to 18V. The output voltage remains stable and regulated as long as the input voltage is within this range. However, if the input voltage drops below 4.5V, the output voltage may not be regulated, and if it exceeds 18V, the device may be damaged.
