REF198GSZ - Analog Devices

Description: V-Ref Precision 4.096V 30mA 8-Pin SOIC

Download REF198GSZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

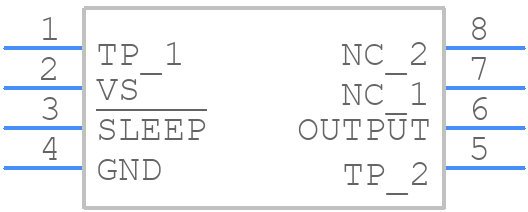

REF198GSZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
REF198GSZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S-Suffix (R-8)
click to zoom
3D Models
REF198GSZ - Analog Devices - 3D model - Small Outline Packages - S-Suffix (R-8)
click to zoom

REF198GSZ Details

  • Manufacturer Part Number:

    REF198GSZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, MS-012AA, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    4.106 V

  • Output Voltage-Min:

    4.086 V

  • Output Voltage-Nom:

    4.096 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    15 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temp Coef of Voltage-Max:

    25 ppm/°C

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Trim/Adjustable Output:

    NO

  • Voltage Tolerance-Max:

    0.24%

  • Width:

    3.9 mm

REF198GSZ Frequently Asked Questions (FAQs)

  • The REF198GSZ is a sensitive device and requires careful layout and placement to minimize noise and ensure accurate performance. It's recommended to place the device close to the analog-to-digital converter (ADC) or digital-to-analog converter (DAC), and to use a solid ground plane to reduce noise. Additionally, it's recommended to use a low-ESR capacitor (e.g., 10uF) between the VOUT pin and GND to filter out high-frequency noise.
  • To ensure stability and accuracy over temperature, it's recommended to use a high-quality, low-temperature-coefficient (TC) resistor (e.g., 1kΩ, 0.1%) in the output divider network. Additionally, it's recommended to use a thermally stable voltage reference, such as the REF198GSZ, which has a specified temperature coefficient of ±10ppm/°C.
  • The recommended output capacitor value for the REF198GSZ is 10uF to 22uF, with a low equivalent series resistance (ESR) to minimize noise and ensure stability. A larger capacitor value can be used, but it may increase the startup time and reduce the power supply rejection ratio (PSRR).
  • Yes, the REF198GSZ is suitable for use as a voltage reference for ADCs or DACs. It provides a stable and accurate voltage reference, which is essential for maintaining the accuracy and linearity of the converter. However, it's recommended to consult the datasheet and application notes for specific guidance on using the REF198GSZ with ADCs or DACs.
  • The output voltage of the REF198GSZ can be calculated using the following formula: VOUT = (R1 / (R1 + R2)) * VREF, where R1 and R2 are the resistors in the output divider network, and VREF is the internal voltage reference (2.048V for the REF198GSZ).

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

REF198GSZ Overview

Use the download button to access the REF198GSZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like REF19, or try a keyword search, such as Voltage References

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
