The REF200AU/2K5E4 is a sensitive device and requires careful layout and placement to ensure accurate performance. It's recommended to place the device close to the analog-to-digital converter (ADC) or digital-to-analog converter (DAC) it's supplying, and to use a solid ground plane to minimize noise. Additionally, keep the device away from high-current or high-voltage traces, and use a low-impedance path for the output voltage.
To ensure stability and accuracy over temperature, it's essential to provide a stable voltage supply to the REF200AU/2K5E4. Use a high-quality voltage regulator, and decouple the input voltage with a capacitor (e.g., 10uF) to reduce noise. Additionally, consider using a temperature-compensated voltage reference or a voltage reference with a low temperature coefficient (TC) to minimize temperature-related drift.
The recommended output capacitor value for the REF200AU/2K5E4 is typically in the range of 10nF to 100nF. A larger capacitor value can help to reduce noise and improve stability, but may also increase the startup time. A smaller capacitor value can reduce the startup time but may not provide adequate noise filtering. The optimal value depends on the specific application and noise requirements.
Yes, the REF200AU/2K5E4 can be used as a voltage reference for multiple devices, but it's essential to consider the total load current and impedance. The REF200AU/2K5E4 has a limited output current capability (up to 10mA), so ensure that the total load current does not exceed this value. Additionally, use a buffer amplifier or a voltage follower to isolate the output voltage and prevent loading effects.
The REF200AU/2K5E4 has a startup time of around 10ms, during which the output voltage may not be stable. To handle this, use a power-on reset (POR) circuit or a voltage supervisor to ensure that the system is held in reset until the reference voltage is stable. Additionally, consider using a soft-start circuit to gradually ramp up the output voltage to prevent inrush currents.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
REF200AU/2K5E4 Overview

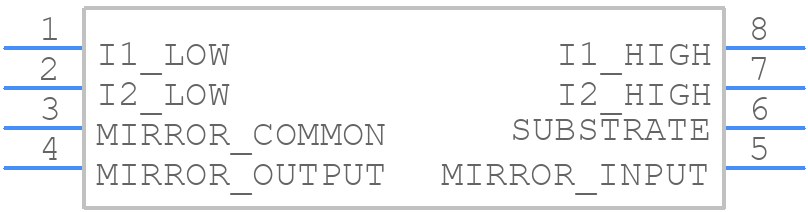

Use the download button to access the REF200AU/2K5E4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like REF20,
or try a keyword search, such as Other Signal Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
