The recommended PCB layout for the RF2516 involves using a 4-layer PCB with a solid ground plane, placing the device near the edge of the board, and using short, direct traces for the RF input and output. Additionally, it's recommended to use a common mode choke or a ferrite bead to filter out noise on the power supply lines.
To ensure the RF2516 is biased correctly, it's essential to follow the recommended biasing circuitry shown in the datasheet. This includes using a voltage regulator to provide a stable 5V supply, and using resistors to set the bias voltage and current. It's also important to ensure that the bias voltage is within the recommended range of 2.7V to 3.3V.
The maximum power handling capability of the RF2516 is 2W. However, it's recommended to derate the power handling capability based on the operating frequency, temperature, and other environmental factors to ensure reliable operation.
To troubleshoot common issues with the RF2516, start by checking the PCB layout and ensuring that it meets the recommended layout guidelines. Next, verify that the biasing circuitry is correct and that the device is properly powered. Use a spectrum analyzer to measure the output signal and identify any issues with gain or noise floor. Finally, check for any signs of overheating or damage to the device.
The RF2516 is a commercial-grade device and may not meet the stringent requirements of high-reliability applications. However, RF Micro Devices Inc offers a range of high-reliability devices that are specifically designed for use in aerospace, defense, and other demanding applications. It's recommended to consult with the manufacturer or a qualified representative to determine the suitability of the RF2516 or alternative devices for high-reliability applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RF2516 Overview

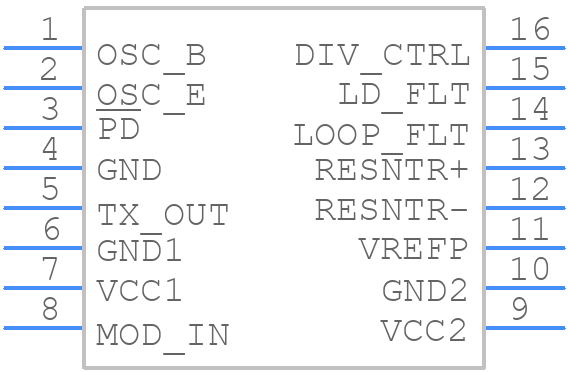

Use the download button to access the RF2516 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RF251,
or try a keyword search, such as Other Telecom ICs
