RF430FRL153HCRGER - Texas Instruments

Description: NFC ISO15693 Sensor Transponder with 14-bit sigma-delta ADC

Download RF430FRL153HCRGER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

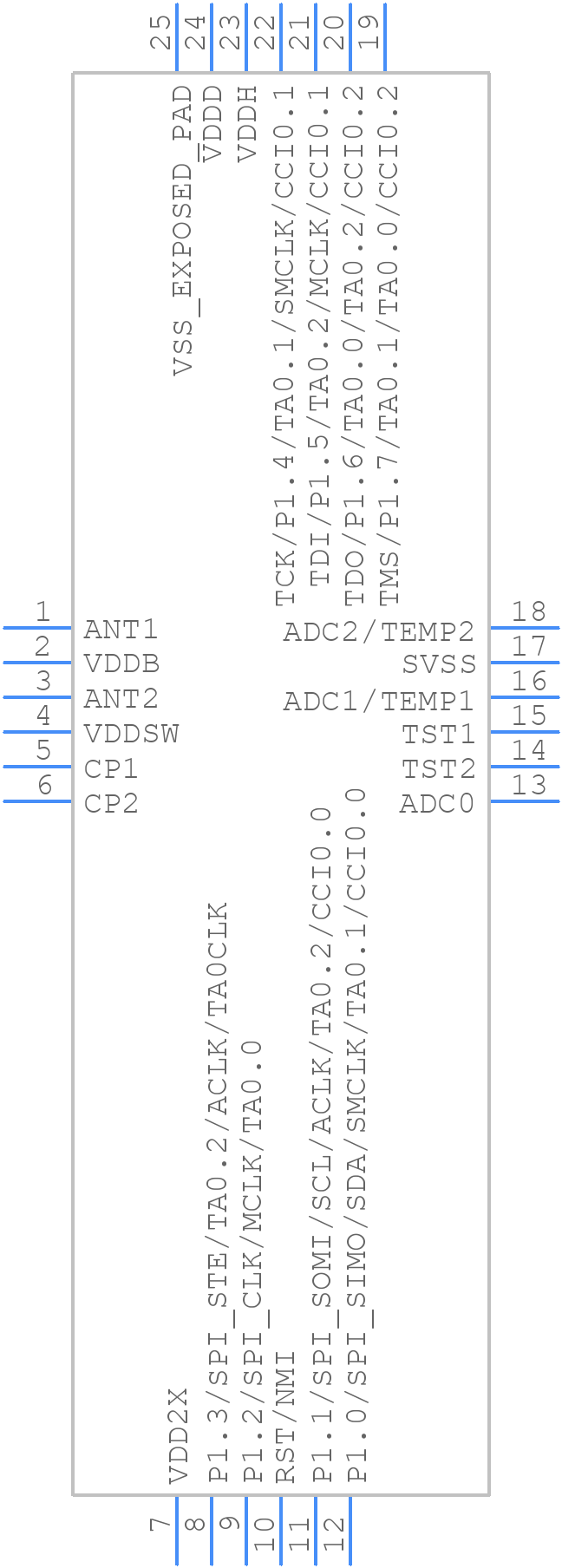

RF430FRL153HCRGER - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
RF430FRL153HCRGER - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGE (S-PVQFN-N24)_2-2.2thermalpad
click to zoom
3D Models
RF430FRL153HCRGER - Texas Instruments - 3D model - Quad Flat No-Lead - RGE (S-PVQFN-N24)_2-2.2thermalpad
click to zoom

RF430FRL153HCRGER Details

  • Manufacturer Part Number:

    RF430FRL153HCRGER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.75

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Bus Compatibility:

    I2C; SPI

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

  • uPs/uCs/Peripheral ICs Type:

    NFC CONTROLLERS

RF430FRL153HCRGER Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate layer for the RF signal is recommended. The device should be placed near the edge of the board to minimize interference.
  • Ensure that the antenna is properly matched to the device, and the transmission power is set to the optimal level. Also, implement error correction mechanisms such as CRC and retransmission to ensure reliable data transfer.
  • The device is rated for operation from -40°C to 85°C. However, it's recommended to operate within a narrower range (e.g., 0°C to 60°C) for optimal performance and reliability.
  • Use a cryptographic algorithm such as AES or SHA-256 to encrypt data. Implement a secure authentication protocol such as challenge-response or digital signatures to ensure the authenticity of the data and the device.
  • The typical current consumption during transmission is around 10-15 mA, and during reception, it's around 5-10 mA. However, this can vary depending on the specific application and operating conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RF430FRL153HCRGER Overview

Use the download button to access the RF430FRL153HCRGER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RF430, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
