Please enter a minimum 3 letters or numbers
Technical Content
Part Image

RF4E070BNTR - ROHM Semiconductor

Description: 4.5V Drive Nch MOSFET

Download RF4E070BNTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

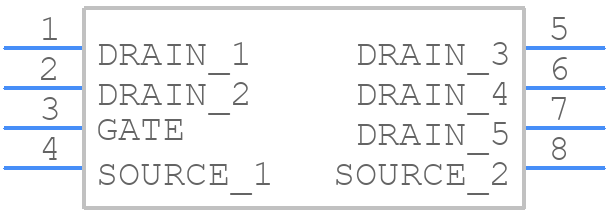

RF4E070BNTR - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints
RF4E070BNTR - ROHM Semiconductor PCB footprint - Other - Other - RF4E070BNTR-3
click to zoom
3D Models
RF4E070BNTR - ROHM Semiconductor - 3D model - Other - RF4E070BNTR-3
click to zoom

RF4E070BNTR Details

  • Manufacturer Part Number:

    RF4E070BNTR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HALOGEN FREE AND ROHS COMPLIANT, HUML2020L8, 6 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    5.4

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    30 V

  • Drain Current-Max (ID):

    7 A

  • Drain-source On Resistance-Max:

    0.04 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    28 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

RF4E070BNTR Frequently Asked Questions (FAQs)

  • ROHM provides a recommended PCB layout in the application note AN1181, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
  • The RF4E070BNTR has a thermal pad on the bottom of the package, which should be connected to a thermal ground plane on the PCB to dissipate heat. Additionally, ensure good airflow around the device and consider using a heat sink if necessary.
  • The RF4E070BNTR is rated for operation from -40°C to 125°C, but the maximum junction temperature (Tj) should not exceed 150°C. Ensure that the device is operated within the recommended temperature range to prevent damage or degradation.
  • The input capacitor should be selected based on the input voltage, frequency, and ripple current requirements. A general guideline is to use a capacitor with a capacitance value between 1uF to 10uF, and a voltage rating of at least 2x the input voltage. Consult the datasheet and application notes for more specific guidance.
  • The recommended input voltage range for RF4E070BNTR is 2.5V to 5.5V, but the device can operate from 2.3V to 6.0V. However, operating outside the recommended range may affect performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RF4E070BNTR Overview

Use the download button to access the RF4E070BNTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RF4E0, or try a keyword search, such as Power Field-Effect Transistors

Parts related to RF4E070BNTR

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader Twitter LinkedIn

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑
