RF4E070BNTR1 - ROHM Semiconductor

Description: MOSFET, N-CH, 30V, 7A, DFN2020 ROHS COMPLIANT: YES

Download RF4E070BNTR1 Model
Schematic

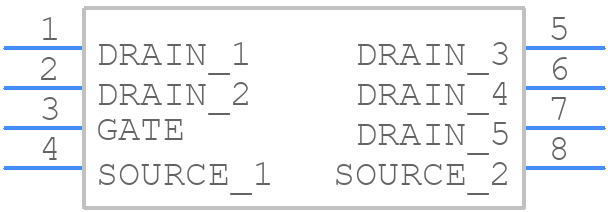

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
RF4E070BNTR1 - ROHM Semiconductor PCB footprint - Other - Other - RF4E070BNTR1-1
click to zoom
3D Models
RF4E070BNTR1 - ROHM Semiconductor  - 3D model - Other - RF4E070BNTR1-1
click to zoom

RF4E070BNTR1 Details

  • Manufacturer Part Number:

    RF4E070BNTR1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN2020-8S, 8 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    5.4

  • Avalanche Energy Rating (Eas):

    3.5 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    30 V

  • Drain Current-Max (ID):

    7 A

  • Drain-source On Resistance-Max:

    0.04 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    28 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

RF4E070BNTR1 Frequently Asked Questions (FAQs)

  • ROHM provides a recommended PCB layout in the application note AN11984, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
  • The device has a thermal pad on the bottom, which should be connected to a thermal ground plane on the PCB to dissipate heat. Additionally, ensure good airflow around the device and consider using a heat sink if necessary.
  • The device is rated for operation from -40°C to 125°C, but the maximum junction temperature (Tj) should not exceed 150°C to ensure reliability and prevent damage.
  • Yes, the device is rated for operation in humid environments, but it's essential to follow proper handling and storage procedures to prevent moisture-related damage. ROHM recommends following the IPC/JEDEC J-STD-033 standard for moisture-sensitive devices.
  • ROHM recommends following the IPC/JEDEC J-STD-020 standard for soldering, with a peak temperature of 260°C and a dwell time of 30 seconds. Ensure that the soldering process is optimized to prevent thermal damage to the device.
