RF4E080BNTR - ROHM Semiconductor

Description: N-Channel 30 V 8A (Ta) 2W (Ta) Surface Mount HUML2020L8

Download RF4E080BNTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

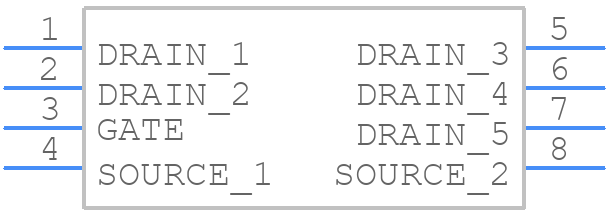

Symbol
RF4E080BNTR - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints
RF4E080BNTR - ROHM Semiconductor PCB footprint - Other - Other - RF4E080BNTR
click to zoom
3D Models
RF4E080BNTR - ROHM Semiconductor - 3D model - Other - RF4E080BNTR
click to zoom

RF4E080BNTR Details

  • Manufacturer Part Number:

    RF4E080BNTR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HALOGEN FREE AND ROHS COMPLIANT, HUML2020L8, 6 PIN

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    21 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    5.4

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    30 V

  • Drain Current-Max (ID):

    8 A

  • Drain-source On Resistance-Max:

    0.0246 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    32 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

RF4E080BNTR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF signal traces short and away from noise sources. Use a 50-ohm microstrip line for the RF output.
  • Use a voltage regulator to ensure a stable 3.3V supply. Decouple the power pins with 10uF and 100nF capacitors. Ensure the bias resistors are correctly sized to set the desired output power.
  • The RF4E080BNTR can operate from -40°C to 85°C. However, the device's performance may degrade at extreme temperatures. Ensure proper thermal management and heat sinking to maintain optimal performance.
  • Use a spectrum analyzer to measure the output power and frequency. Check the biasing and power supply connections. Verify the PCB layout and ensure that the device is properly soldered.
  • Yes, the RF4E080BNTR can be used in switching power amplifier applications. However, ensure that the device is properly biased and that the switching frequency is within the device's operating range.
