Qorvo provides a recommended PCB layout and land pattern in their application note AN-2171, which can be found on their website. It's essential to follow this layout to ensure optimal performance and minimize parasitic effects.
The biasing circuit should be designed to provide a stable voltage supply to the device. A recommended biasing circuit is shown in the datasheet, but it's essential to consider the specific application requirements and adjust the circuit accordingly. Additionally, Qorvo provides a biasing calculator tool on their website to help with the design.
The maximum power handling capability of the RFFM6404TR13 is not explicitly stated in the datasheet. However, according to Qorvo's application note AN-2171, the device can handle up to 2W of input power. It's essential to ensure that the device is operated within its recommended operating conditions to avoid damage or degradation.
Qorvo provides a troubleshooting guide in their application note AN-2171, which covers common issues and their possible causes. Additionally, it's essential to verify that the device is properly biased, and the PCB layout is correct. If issues persist, it's recommended to contact Qorvo's technical support for further assistance.
Yes, the RFFM6404TR13 is a high-power device and requires proper thermal management to ensure reliable operation. Qorvo recommends using a thermal pad or heat sink to dissipate heat, and ensuring that the device is operated within its recommended temperature range.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RFFM6404TR13 Overview

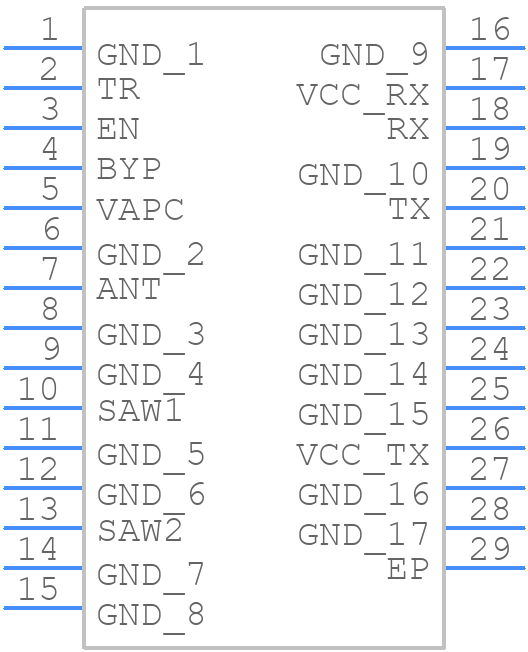

Use the download button to access the RFFM6404TR13 schematic symbol, PCB footprint, and 3D model.
