Qorvo provides a recommended PCB layout guide in their application note AN-2171, which includes guidelines for component placement, trace routing, and grounding to minimize noise and ensure optimal performance.
Qorvo provides a troubleshooting guide in their application note AN-2172, which includes steps to identify and resolve common issues, such as checking for proper power supply, ensuring correct component values, and verifying signal integrity.
Yes, the RFFM6901SR can be used in non-50 ohm systems, but impedance matching is required to ensure optimal performance. Qorvo provides guidance on impedance matching in their application note AN-2173, which includes examples of matching networks for common impedance values.
The RFFM6901SR is rated for operation from -40°C to +85°C, but Qorvo recommends derating the device for extended operation above 70°C to ensure reliability and prevent thermal damage.
Qorvo provides guidance on EMC considerations in their application note AN-2174, which includes recommendations for shielding, filtering, and layout to minimize electromagnetic interference (EMI) and ensure compliance with regulatory standards.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RFFM6901SR Overview

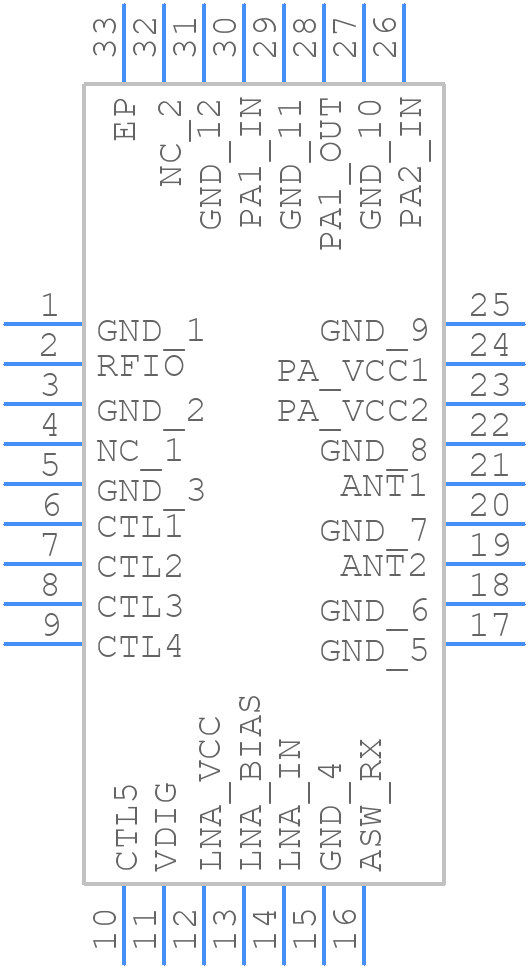

Use the download button to access the RFFM6901SR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RFFM6,
or try a keyword search, such as Other Telecom ICs
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
