RFFM6901TR13 - Qorvo

Description: 868 - 928 MHz, 2.8 - 4.2 V, ISM Band Transmit / Receive Module with Diversity Switch

Download RFFM6901TR13 Model
Schematic

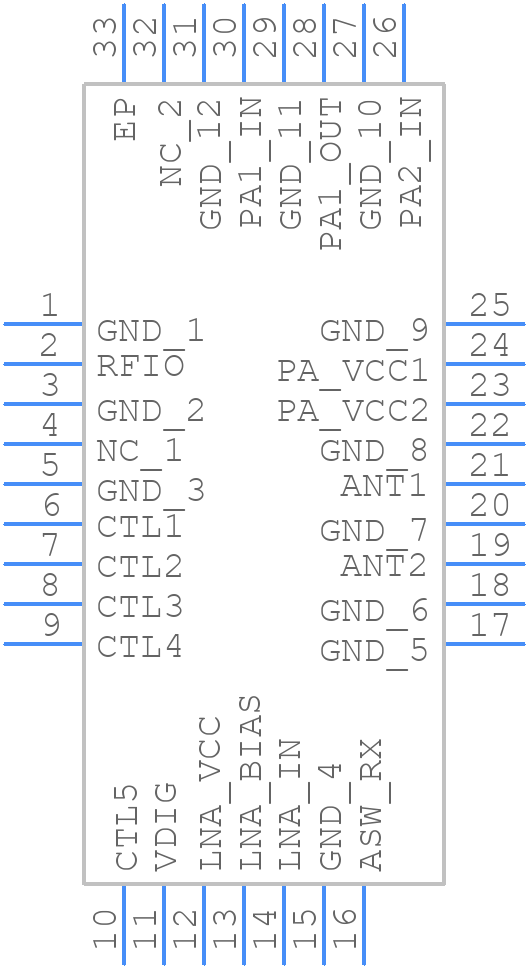

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
RFFM6901TR13 - Qorvo PCB footprint - Other - Other - LGA, 32-pin, 6.0mm x 6.0mm
click to zoom
3D Models
RFFM6901TR13 - Qorvo  - 3D model - Other - LGA, 32-pin, 6.0mm x 6.0mm
click to zoom

RFFM6901TR13 Details

  • Manufacturer Part Number:

    RFFM6901TR13

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    LGA-32

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Qorvo

  • YTEOL:

    0

  • JESD-30 Code:

    S-XBGA-B32

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HLGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, HEAT SINK/SLUG

  • Seated Height-Max:

    1.25 mm

  • Supply Voltage-Nom:

    4 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BUTT

  • Terminal Pitch:

    0.64 mm

  • Terminal Position:

    BOTTOM

  • Width:

    6 mm

RFFM6901TR13 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the edge of the board to minimize the length of the RF traces. A 50-ohm microstrip line should be used to connect the device to the antenna.
  • The device requires a 3.3V power supply and a bias current of 10mA to 20mA. A voltage regulator and a bias resistor network can be used to set the bias voltage and current. The bias voltage should be set to 1.5V to 2.5V for optimal performance.
  • The RFFM6901TR13 can handle up to 30dBm (1W) of input power. However, the device is typically operated at a lower power level to ensure optimal performance and reliability.
  • Use a spectrum analyzer to measure the output power and frequency of the device. Check the bias voltage and current to ensure they are within the recommended range. Verify that the PCB layout and component placement are correct. If issues persist, consult the Qorvo application note and technical support resources.
  • Yes, the RFFM6901TR13 can be used in a push-pull configuration to achieve higher output power and improved linearity. However, this requires careful design and layout to ensure proper impedance matching and biasing.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RFFM6901TR13 Overview

Use the download button to access the RFFM6901TR13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RFFM6, or try a keyword search, such as Cellular Telephone Circuits
