Qorvo provides a recommended PCB layout in their application note AN-1234, which includes guidelines for component placement, trace routing, and grounding to minimize noise and ensure optimal performance.
Qorvo recommends using their matching network design tool, available on their website, to optimize the matching network for your specific application. The tool takes into account the device's operating frequency, impedance, and other parameters to provide a customized matching network design.
While the datasheet specifies a maximum input power of 30 dBm, the actual power handling capability of the RFFM6907SR depends on the operating frequency, temperature, and other factors. Qorvo recommends consulting their application engineers for specific guidance on power handling for your application.
Qorvo recommends following the biasing guidelines outlined in the datasheet, including the recommended voltage and current levels for the device. Additionally, it's essential to ensure that the biasing circuitry is properly decoupled and filtered to minimize noise and ensure stable operation.
The RFFM6907SR is a high-power device that requires proper thermal management to ensure reliable operation. Qorvo recommends using a heat sink or thermal pad to dissipate heat, and ensuring that the device is mounted on a PCB with a sufficient thermal conductivity.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RFFM6907SR Overview

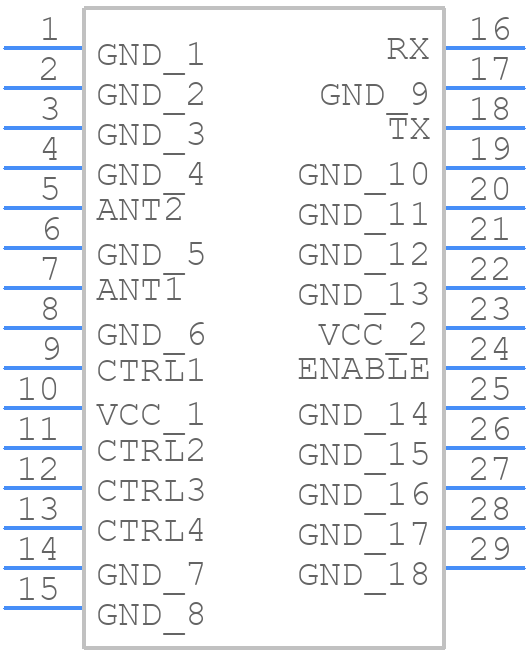

Use the download button to access the RFFM6907SR schematic symbol, PCB footprint, and 3D model.
