A multi-layer PCB with a solid ground plane and a separate RF ground plane is recommended. Use a via-stitching technique to connect the RF ground plane to the main ground plane. Ensure a low-inductance path to ground for the RF pins.
Use a load-pull analysis or a circuit simulator like ADS or AWR to optimize the input and output matching networks. Consider the device's S-parameters and the desired frequency band of operation.
The recommended operating temperature range is -40°C to +85°C. However, the device can operate up to +100°C with reduced performance and reliability.
Ensure good thermal conductivity between the device and the PCB. Use a heat sink or a thermal pad to dissipate heat. Monitor the device's temperature and reduce power output if it exceeds 125°C.
Handle the device with ESD-protective equipment and follow standard ESD precautions. The device has internal ESD protection, but it is not a substitute for proper handling and storage procedures.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RFMD2080SR Overview

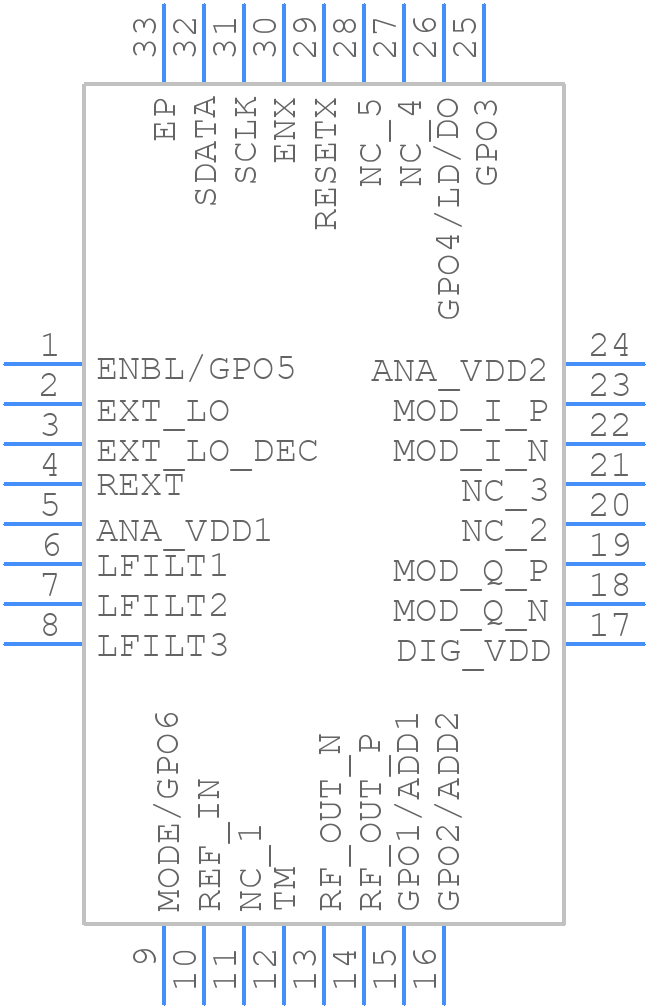

Use the download button to access the RFMD2080SR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RFMD2,
or try a keyword search, such as Modems
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
