RFMD2080TR13 - Qorvo

Description: 45 - 2700 MHz IQ Modulator with Synthesizer / VCO and Baseband Interface

Download RFMD2080TR13 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

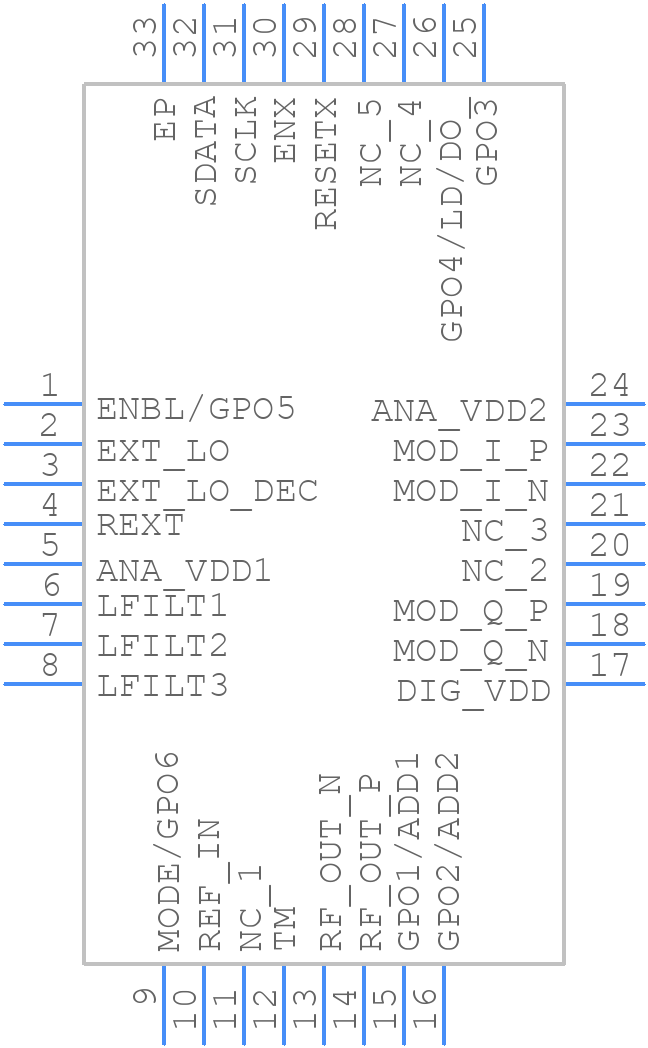

RFMD2080TR13 - Qorvo - PCB symbol
click to zoom
PCB Footprints
RFMD2080TR13 - Qorvo PCB footprint - Other - Other - QFN, 32-Pin, 5mm x 5mm
click to zoom
3D Models
RFMD2080TR13 - Qorvo - 3D model - Other - QFN, 32-Pin, 5mm x 5mm
click to zoom

RFMD2080TR13 Details

  • Manufacturer Part Number:

    RFMD2080TR13

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    5 X 5 MM, GREEN, QFN-32

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Qorvo

  • YTEOL:

    3

  • JESD-30 Code:

    S-XQCC-N32

  • Length:

    5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.95 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    MODEM-MODULATOR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

RFMD2080TR13 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate RF ground plane is recommended. Use a via-stitching technique to connect the RF ground plane to the main ground plane. Ensure a low-inductance path to ground for the RF pins.
  • Use a load-pull analysis to determine the optimal impedance matching for the input and output stages. A 50-ohm system impedance is recommended. Use a Smith chart to visualize the impedance matching process.
  • The recommended operating temperature range for the RFMD2080TR13 is -40°C to +85°C. However, the device can operate up to +105°C with reduced performance and reliability.
  • Implement a thermal management system, such as a heat sink or thermal pad, to dissipate heat. Monitor the device temperature using a thermistor or thermal sensor. Reduce the power output or implement a thermal shutdown mechanism to prevent overheating.
  • The RFMD2080TR13 has internal ESD protection, but handling precautions are still necessary. Use an ESD wrist strap or mat, and handle the device by the package body, not the pins. Avoid touching the pins or internal components.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RFMD2080TR13 Overview

Use the download button to access the RFMD2080TR13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RFMD2, or try a keyword search, such as Modems

About Qorvo

Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
