Qorvo provides a recommended PCB layout and thermal management guidelines in their application notes and design guides. It's essential to follow these guidelines to ensure optimal performance, thermal dissipation, and to prevent overheating.
Qorvo provides a set of recommended input and output matching networks in their datasheet and application notes. However, the optimal matching network design may vary depending on the specific application and frequency band. Engineers can use simulation tools and iterative design processes to optimize the matching networks for their specific use case.
Qorvo provides guidelines for soldering and assembly in their datasheet and application notes. It's essential to follow these guidelines to prevent damage to the device and ensure reliable operation. In general, a controlled soldering process with a peak temperature of 260°C (500°F) and a dwell time of 10-30 seconds is recommended.
To ensure the device operates within the specified thermal limits, engineers should follow Qorvo's recommended thermal management guidelines, including the use of thermal vias, thermal pads, and heat sinks. Additionally, they should monitor the device's temperature and adjust the thermal management design as needed to prevent overheating.
Operating the device outside of the recommended operating conditions can lead to reduced performance, reliability, and lifespan. Engineers should ensure that the device operates within the specified voltage, current, and temperature ranges to prevent damage and ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RFPA3809TR13 Overview

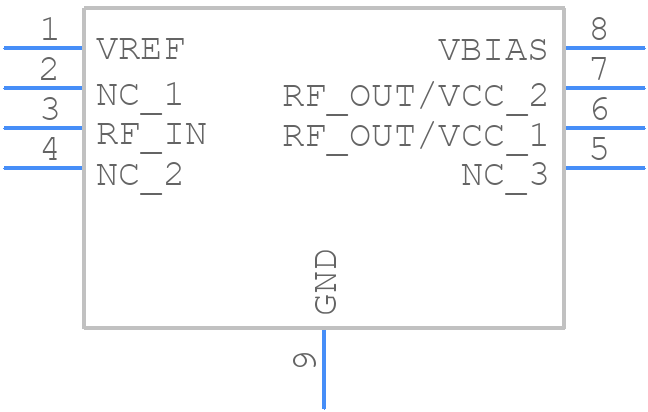

Use the download button to access the RFPA3809TR13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RFPA3,
or try a keyword search, such as RF/Microwave Amplifiers
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
