- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for RFSW6023SR
- Part Number RFSW6023SR
- Manufacturer Qorvo
- Pin Count 13
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - RFSW1012+
- Released Date Mar 18, 2020
- Last Modified Date Feb 28, 2025 1:58 PM UTC
- Pinout / Pin List Click Here (Member Only)
RFSW6023SR Details
-
Manufacturer Part Number:
RFSW6023SR
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
ECCN Code:
EAR99
-
HTS Code:
8536.50.70.00
-
Manufacturer:
Qorvo
-
YTEOL:
0
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
-
Input Power-Max (CW):
36 dBm
-
Insertion Loss-Max:
0.8 dB
RFSW6023SR Frequently Asked Questions (FAQs)
-
A good grounding scheme is crucial for the RFSW6023SR. It's recommended to use a solid ground plane, and to connect the exposed pad to the ground plane. The datasheet provides a recommended PCB layout, but it's also important to follow general RF design guidelines, such as keeping the signal traces short and away from the edges of the board.
-
The RFSW6023SR requires a positive voltage supply (VDD) and a negative voltage supply (VSS) to operate. Improper biasing can lead to reduced performance, increased power consumption, or even damage to the device. Ensure that the voltage supplies are within the recommended range (2.7V to 5.5V for VDD and -2.7V to -5.5V for VSS) and that the voltage rails are well-regulated.
-
The RFSW6023SR can handle up to 33 dBm of continuous wave (CW) power. However, the actual power handling capability may vary depending on the specific application, frequency, and environmental conditions. It's essential to follow the recommended power handling guidelines and to ensure proper thermal management to prevent overheating.
-
The RFSW6023SR is a broadband switch, but its performance can be optimized for specific frequency bands by adjusting the external matching components. Use a Smith chart or a circuit simulator to optimize the impedance matching network for your specific frequency band. Additionally, consider using a pi-network or a T-network topology to achieve the desired impedance match.
-
The RFSW6023SR has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during assembly and testing. To prevent latch-up, ensure that the voltage supplies are ramped up and down slowly, and that the device is not exposed to excessive voltage or current transients.
Trust Checks
Community Provided
System Verified
Community Approved
RFSW6023SR Overview

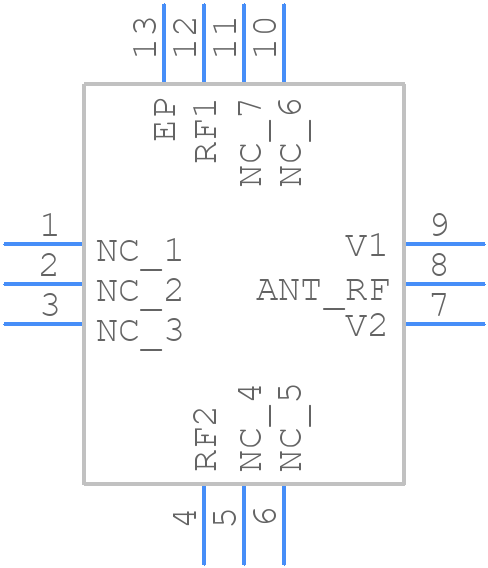

Use the download button to access the RFSW6023SR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RFSW6,
or try a keyword search, such as RF/Microwave Switches
