RFSW6042TR7 - Qorvo

Description: 5 - 6000 MHz Low Insertion High Isolation SP4T Switch

Download RFSW6042TR7 Model

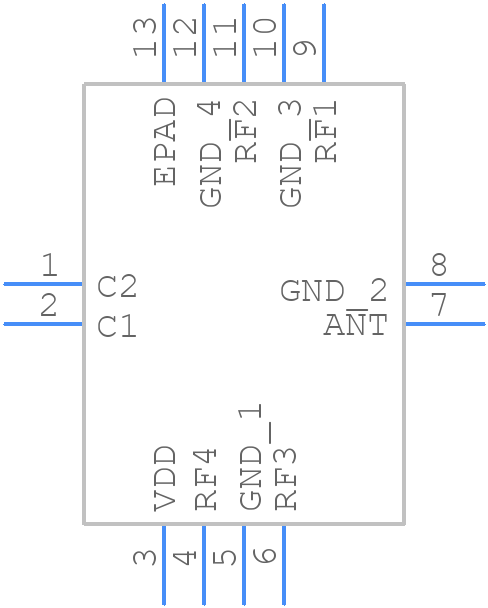

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
RFSW6042TR7 - Qorvo PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RFSW6042TR7
click to zoom
3D Models
RFSW6042TR7 - Qorvo  - 3D model - Quad Flat No-Lead - RFSW6042TR7
click to zoom

RFSW6042TR7 Details

  • Manufacturer Part Number:

    RFSW6042TR7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    1.80 X 1.80 MM, GREEN, QFN-12

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Malaysia

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Qorvo

  • YTEOL:

    9.2

  • JESD-30 Code:

    S-XQCC-N12

  • Length:

    1.8 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.65 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    RF AND BASEBAND CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    1.8 mm

RFSW6042TR7 Frequently Asked Questions (FAQs)

  • Qorvo provides a recommended PCB layout and land pattern in their application note AN-2171, which should be followed for optimal performance and to minimize parasitic effects.
  • The RFSW6042TR7 requires a positive voltage supply (VDD) and a negative voltage supply (VSS) to operate. Ensure that VDD is between 2.7V to 5.5V and VSS is between -2.7V to -5.5V. Also, ensure that the control voltage (VCTRL) is within the specified range of 1.8V to VDD.
  • The RFSW6042TR7 can handle up to 33 dBm of input power, but this may vary depending on the frequency and operating conditions. It's recommended to consult with Qorvo's application engineers for specific guidance on power handling.
  • To minimize insertion loss and optimize the switch's frequency response, ensure that the PCB layout is optimized for the frequency range of operation, and that the switch is properly terminated with 50 ohms. Additionally, consider using a pi-network or other impedance matching techniques to optimize the switch's frequency response.
  • The RFSW6042TR7 is specified to operate from -40°C to 85°C, but it's recommended to operate within a narrower temperature range (e.g., 0°C to 70°C) for optimal performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RFSW6042TR7 Overview

Use the download button to access the RFSW6042TR7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RFSW6, or try a keyword search, such as Cellular Telephone Circuits

About Qorvo

Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
