- Part Number RFSW6062SR
- Manufacturer Qorvo
- Pin Count 15
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - RFSW6062SR
- Released Date Apr 12, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
RFSW6062SR Details
-
Manufacturer Part Number:
RFSW6062SR
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
QFN-14
-
ECCN Code:
EAR99
-
HTS Code:
8536.50.70.00
-
Manufacturer:
Qorvo
-
YTEOL:
0
-
Additional Feature:
HIGH ISOLATION
-
Construction:
COMPONENT
-
Input Power-Max (CW):
32 dBm
RFSW6062SR Frequently Asked Questions (FAQs)
-
Qorvo provides a recommended PCB layout and thermal management guide in their application note AN-2171, which includes guidelines for thermal pad connection, PCB thickness, and heat sink attachment.
-
To ensure reliable operation, it's essential to follow the recommended operating conditions, including voltage, current, and temperature. Additionally, consider using a thermal management system, such as a heat sink or thermal pad, to maintain a stable temperature.
-
The RFSW6062SR has built-in ESD protection, but it's still important to follow proper ESD handling procedures, such as using an ESD wrist strap or mat, to prevent damage during handling and assembly.
-
While the RFSW6062SR is designed for 50 ohm systems, it can be used in non-50 ohm systems with proper impedance matching. However, this may affect the switch's performance, and additional circuitry may be required to achieve optimal results.
-
The recommended switching frequency and timing for the RFSW6062SR depend on the specific application. Qorvo provides guidelines for switching frequency and timing in their application note AN-2171, which includes recommendations for rise and fall times, and switching frequency.
Trust Checks
Community Provided
System Verified
Community Approved
RFSW6062SR Overview

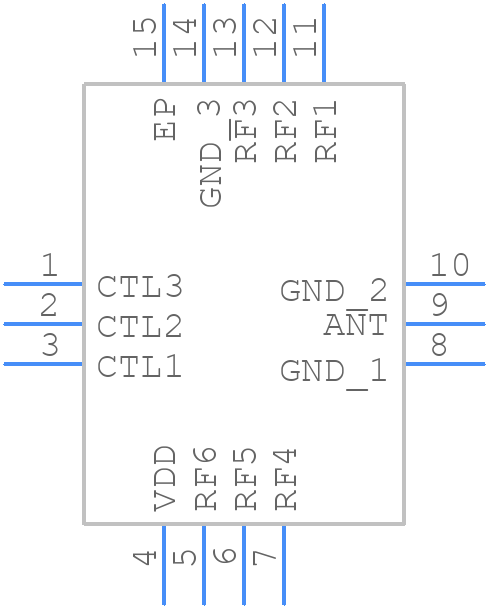

Use the download button to access the RFSW6062SR schematic symbol, PCB footprint, and 3D model.
