Qorvo provides a recommended PCB layout and land pattern in their application note AN-2171, which can be found on their website. It's essential to follow this layout to ensure optimal performance and minimize parasitic effects.
The RFSW6124TR13 requires a bias voltage of 3.3V or 5V, and a bias current of 10mA to 20mA. Ensure that the bias voltage is stable and noise-free, and that the bias current is within the recommended range to achieve optimal performance.
While the datasheet specifies an operating frequency range of 100MHz to 6GHz, the RFSW6124TR13 can operate up to 8GHz with some degradation in performance. However, it's essential to consult with Qorvo's application engineers to determine the feasibility of operating at frequencies above 6GHz.
The RFSW6124TR13 has a maximum junction temperature of 150°C. Ensure that the device is mounted on a heat sink or a thermally conductive substrate, and that the ambient temperature is within the recommended range to prevent overheating.
The RFSW6124TR13 is a sensitive device and requires proper ESD protection. Qorvo recommends using a human body model (HBM) ESD protection of at least 2kV, and a charged device model (CDM) ESD protection of at least 500V.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RFSW6124TR13 Overview

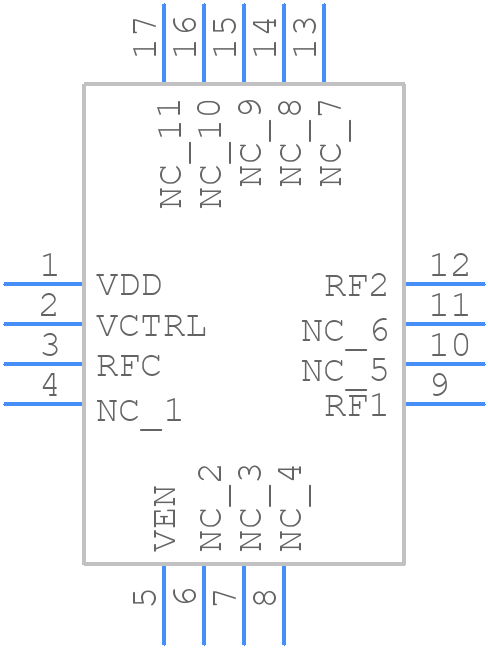

Use the download button to access the RFSW6124TR13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RFSW6,
or try a keyword search, such as RF/Microwave Switches
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
