- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for RFSW6224SR
- Part Number RFSW6224SR
- Manufacturer Qorvo
- Pin Count 17
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - QFN-16-1
- Released Date Nov 15, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
RFSW6224SR Details
-
Manufacturer Part Number:
RFSW6224SR
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
QFN-16
-
ECCN Code:
EAR99
-
HTS Code:
8536.50.70.00
-
Manufacturer:
Qorvo
-
YTEOL:
0
-
1dB Compression Point:
36 dBm
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
RFSW6224SR Frequently Asked Questions (FAQs)
-
Qorvo provides a recommended PCB layout and thermal management guide in their application note AN-2171, which includes guidelines for thermal pad connection, PCB thickness, and heat sink attachment.
-
To ensure reliable switching and minimize insertion loss, it's essential to follow the recommended drive circuitry and voltage levels, as well as to implement proper PCB layout and grounding techniques. Additionally, Qorvo recommends using a 10kΩ pull-up resistor on the control pin to prevent unwanted switching.
-
While the datasheet specifies an operating frequency range of DC to 6 GHz, Qorvo has tested the RFSW6224SR up to 8 GHz with minimal degradation in performance. However, it's essential to consult with Qorvo's application engineers for specific guidance on operating frequencies above 6 GHz.
-
The RFSW6224SR has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during assembly and testing. Qorvo recommends using an ESD wrist strap or mat, and handling the device by the package rather than the pins.
-
Qorvo recommends storing the RFSW6224SR in a dry, cool place, away from direct sunlight and moisture. The device should be stored in its original packaging or an equivalent ESD-protective package. Avoid bending or flexing the leads, and handle the device by the package rather than the pins.
Trust Checks
Community Provided
System Verified
Community Approved
RFSW6224SR Overview

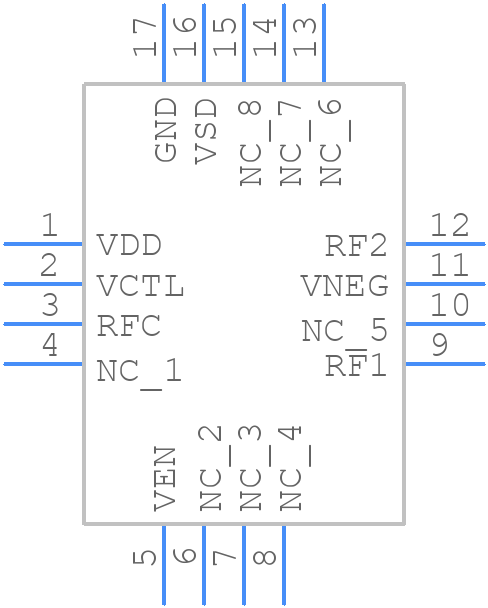

Use the download button to access the RFSW6224SR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RFSW6,
or try a keyword search, such as RF/Microwave Switches
