RGBUA8M-BP - MCC

Description: 1-Phase Bridge IF(AV) 8(A) VRWM 1000(V) IFSM 160(A) IF 4(A) VR 1000(V)

Download RGBUA8M-BP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
RGBUA8M-BP - MCC - PCB symbol
click to zoom

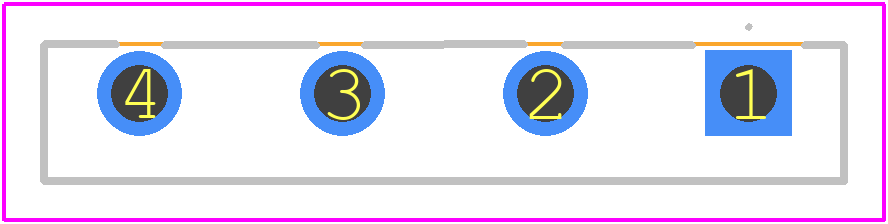

PCB Footprints
RGBUA8M-BP - MCC PCB footprint - Other - Other - JC_1
click to zoom
3D Models
RGBUA8M-BP - MCC - 3D model - Other - JC_1
click to zoom

RGBUA8M-BP Details

  • Manufacturer Part Number:

    RGBUA8M-BP

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Manufacturer:

    Micro Commercial Components

  • Diode Type:

    BRIDGE RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    1.3 V

  • Non-rep Pk Forward Current-Max:

    160 A

  • Rep Pk Reverse Voltage-Max:

    1000 V

  • Reverse Current-Max:

    5 µA

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RGBUA8M-BP Overview

Use the download button to access the RGBUA8M-BP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RGBUA, or try a keyword search, such as Bridge Rectifier Diodes
