A 2-layer or 4-layer PCB with a thermal relief pattern and a solid ground plane is recommended for optimal thermal performance. The thermal pad should be connected to a large copper area to dissipate heat efficiently.
Ensure the input voltage is within the recommended range (8-12V) and the output voltage is set to the desired value using the feedback resistors. Also, ensure the device is properly decoupled with capacitors to minimize noise and oscillations.
The maximum SOA for RGC80TSX8RGC11 is 40V, 80A, and 200W. Operating the device beyond these limits can cause damage or reduce its lifespan.
Use a voltage regulator or a TVS diode to protect the device from overvoltage conditions. For overcurrent protection, use a current sense resistor and a comparator to detect excessive current and shut down the device if necessary.
Store the device in a dry, cool place away from direct sunlight. Handle the device by the body, not the leads, to prevent damage. Use an anti-static wrist strap or mat to prevent ESD damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RGC80TSX8RGC11 Overview

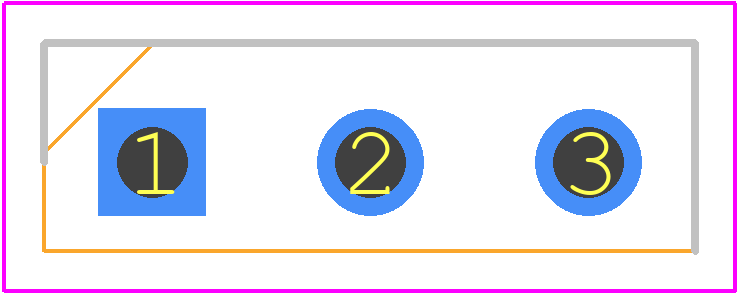

Use the download button to access the RGC80TSX8RGC11 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RGC80,
or try a keyword search, such as IGBTs
