RHA0J331MCN1GS - Nichicon

Description: Cap Aluminum Polymer 330uF 6.3VDC 20% (8 X 6.7mm) SMD 0.009 Ohm 4500mA 2000h 105C T/R

Download RHA0J331MCN1GS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
RHA0J331MCN1GS - Nichicon - PCB symbol
click to zoom
PCB Footprints

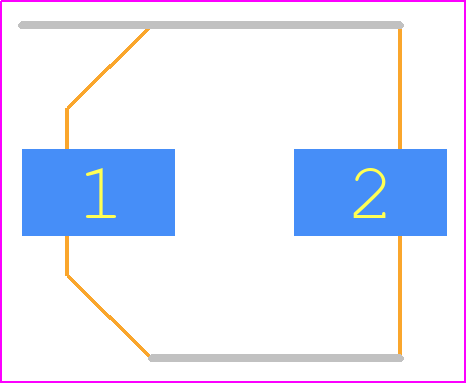

RHA0J331MCN1GS - Nichicon PCB footprint - Capacitor Al Electrolytic - Capacitor Al Electrolytic - CASE CODE 8X6.7
click to zoom
3D Models
RHA0J331MCN1GS - Nichicon - 3D model - Capacitor Al Electrolytic - CASE CODE 8X6.7
click to zoom

RHA0J331MCN1GS Details

  • Manufacturer Part Number:

    RHA0J331MCN1GS

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    7.35

  • Additional Feature:

    ESR IS MEASURED AT 100 KHZ

  • Capacitance:

    330 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    8 mm

  • Dielectric Material:

    ALUMINUM (SOLID POLYMER)

  • ESR:

    9 mΩ

  • Height:

    6.7 mm

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.7 mA

  • Length:

    8.3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, 15 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    6.3 V

  • Ripple Current:

    450 mA

  • Size Code:

    3333

  • Surface Mount:

    YES

  • Tan Delta:

    0.12

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Shape:

    FLAT

  • Width:

    8.3 mm

RHA0J331MCN1GS Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C for 10 seconds or less, to prevent damage to the capacitor.
  • Yes, RHA0J331MCN1GS is designed to withstand vibrations up to 10Hz to 2000Hz, 1.5mm double amplitude, but it's recommended to consult with Nichicon Corporation for specific vibration requirements.
  • RHA0J331MCN1GS is rated for operation up to 125°C, but its capacitance and ESR may degrade at high temperatures. Consult Nichicon Corporation for specific temperature derating guidelines.
  • RHA0J331MCN1GS meets the requirements for use in safety-critical applications, but it's essential to consult with Nichicon Corporation and perform thorough testing to ensure compliance with specific safety standards.
  • RHA0J331MCN1GS is designed to operate in humid environments, but it's recommended to follow Nichicon Corporation's guidelines for moisture protection and to ensure proper sealing and encapsulation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RHA0J331MCN1GS Overview

Use the download button to access the RHA0J331MCN1GS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RHA0J, or try a keyword search, such as Aluminum Electrolytic Capacitors
