RHF1201KSO1 footprint, schematic symbol and 3D model by STMicroelectronics

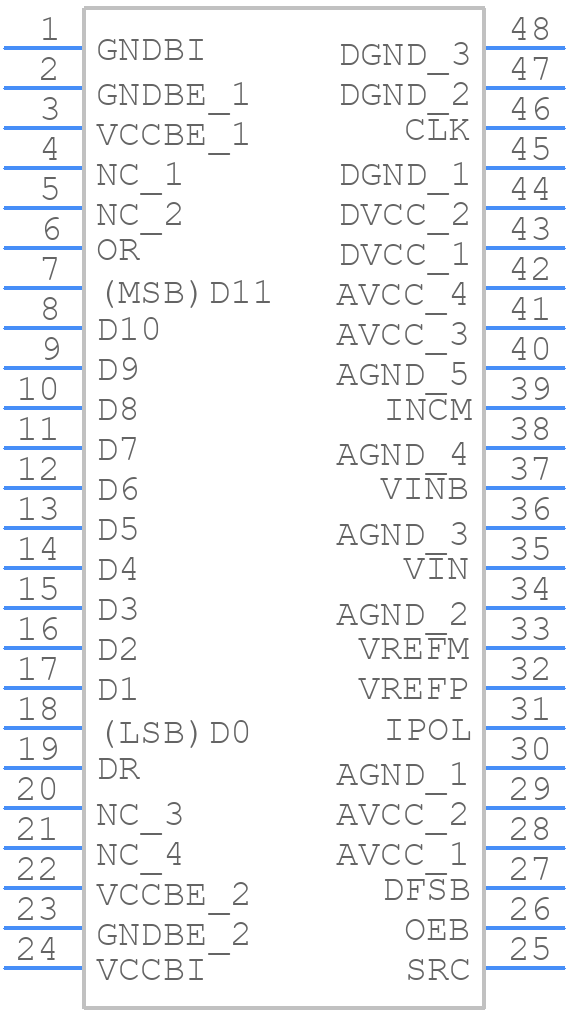

Symbol

click to zoom

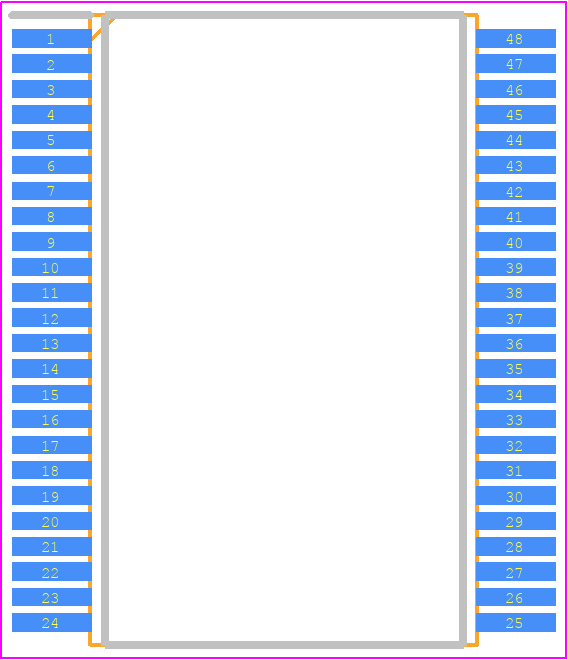

PCB Footprints

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for RHF1201KSO1
Part Number RHF1201KSO1
Manufacturer STMicroelectronics
Pin Count 48
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - SO48_2025
Released Date Sep 24, 2025
Last Modified Date Jan 8, 2026 2:31 PM UTC
Pinout / Pin List Click Here (Member Only)

RHF1201KSO1 Details

Manufacturer Part Number:
RHF1201KSO1
Brand Name:
STMicroelectronics
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
SOIC
Package Description:
SOP-48
Pin Count:
48
Country Of Origin:
France
ECCN Code:
3A001.A.2.C
HTS Code:
8542.39.00.30
Factory Lead Time:
15 Weeks
Manufacturer:
STMicroelectronics
YTEOL:
6
Analog Input Voltage-Max:
2 V
Analog Input Voltage-Min:
-2 V
Converter Type:
ADC, PROPRIETARY METHOD
JESD-30 Code:
R-CDSO-G48
Length:
15.75 mm
Linearity Error-Max (EL):
0.0415%
Number of Analog In Channels:
1
Number of Bits:
12
Number of Functions:
1
Number of Terminals:
48
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Output Bit Code:
BINARY
Output Format:
PARALLEL, WORD
Package Body Material:
CERAMIC
Package Code:
HSSOP
Package Equivalence Code:
SSOP48,.48
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH
Peak Reflow Temperature (Cel):
250
Qualification Status:
Not Qualified
Sample Rate:
50 MHz
Sample and Hold / Track and Hold:
TRACK
Seated Height-Max:
2.72 mm
Supply Voltage-Nom:
2.5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
MILITARY
Terminal Form:
GULL WING
Terminal Pitch:
0.635 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
40
Total Dose:
300k Rad(Si) V
Width:
9.65 mm

RHF1201KSO1 Frequently Asked Questions (FAQs)

A good PCB layout for the RHF1201KSO1 involves keeping the input and output tracks as short as possible, using a solid ground plane, and minimizing the distance between the device and the antenna. A 4-layer PCB with a dedicated ground plane is recommended.
To ensure the RHF1201KSO1 operates within the specified temperature range, make sure to provide adequate heat sinking, avoid overheating, and keep the device away from heat sources. Also, ensure good airflow around the device and avoid blocking the airflow.
When handling the RHF1201KSO1, take precautions to prevent electrostatic discharge (ESD) damage by using an ESD wrist strap or mat, and avoid touching the device's pins. Also, handle the device by the body, not the pins, and avoid bending or flexing the pins.
To troubleshoot issues with the RHF1201KSO1, start by checking the power supply voltage, ensuring it is within the specified range. Then, verify the input and output connections, and check for any signs of overheating or physical damage. Use a logic analyzer or oscilloscope to debug the device's operation.
When using the RHF1201KSO1 in a high-reliability application, consider the device's operating temperature range, voltage tolerance, and radiation hardness. Also, ensure the device is properly derated, and consider using redundant systems or error correction mechanisms to mitigate failures.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

RHF1201KSO1 Overview

Use the download button to access the RHF1201KSO1 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like RHF12, or try a keyword search, such as Analog to Digital Converters
