RHF1401KSO-01V - STMicroelectronics

Description: Rad-hard 14-bit 20 Msps A/D converter

Download RHF1401KSO-01V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

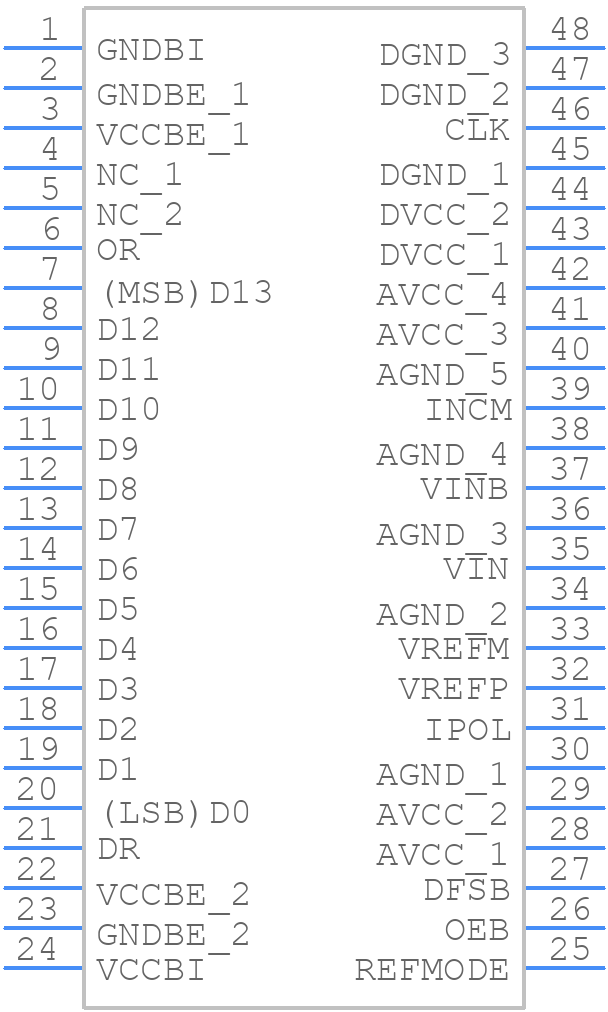

RHF1401KSO-01V - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

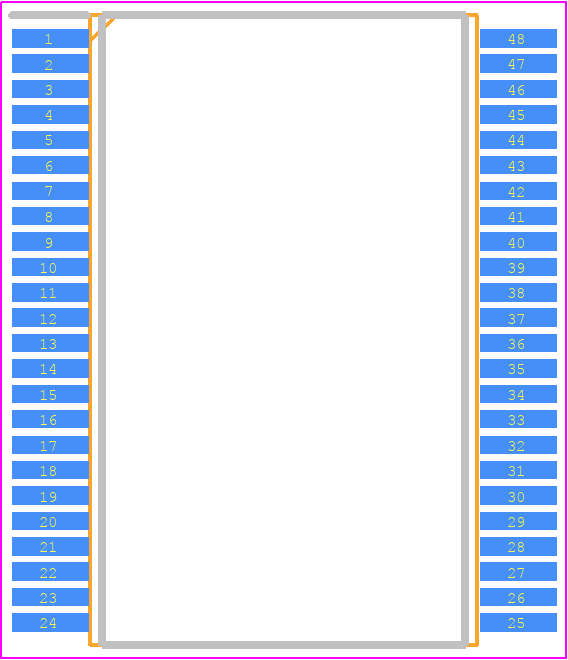

RHF1401KSO-01V - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-48
click to zoom
3D Models
RHF1401KSO-01V - STMicroelectronics - 3D model - Small Outline Packages - SO-48
click to zoom

RHF1401KSO-01V Details

  • Manufacturer Part Number:

    RHF1401KSO-01V

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SO-48

  • Pin Count:

    48

  • Country Of Origin:

    France

  • ECCN Code:

    3A001.A.2.C

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7

  • Analog Input Voltage-Max:

    2 V

  • Converter Type:

    ADC, PIPELINED

  • JESD-30 Code:

    R-CDSO-G48

  • Length:

    15.75 mm

  • Linearity Error-Max (EL):

    0.018311%

  • Number of Analog In Channels:

    1

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Code:

    HSSOP

  • Package Equivalence Code:

    SSOP48,.48

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    20 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Screening Level:

    MIL-PRF-38535 Class V

  • Seated Height-Max:

    2.72 mm

  • Supply Current-Max:

    100 mA

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Total Dose:

    300k Rad(Si) V

  • Width:

    9.65 mm
