RHP-147+ - Mini-Circuits

Description: 1.625GHz Center Frequency High Pass RF Filter (Radio Frequency) 2.75GHz Bandwidth 8-SMD, No Lead

Download RHP-147+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

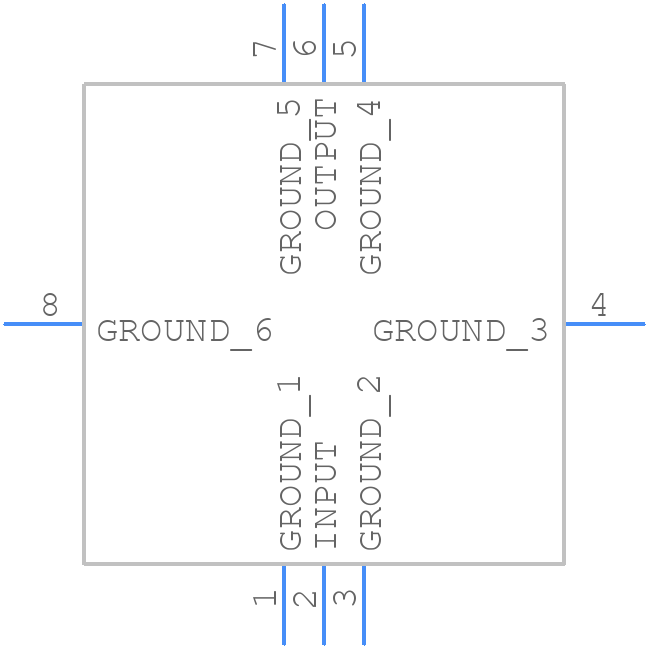

Symbol
RHP-147+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
RHP-147+ - Mini-Circuits PCB footprint - Other - Other - RHP-147+-2
click to zoom
3D Models
RHP-147+ - Mini-Circuits - 3D model - Other - RHP-147+-2
click to zoom

RHP-147+ Details

  • Manufacturer Part Number:

    RHP-147+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6

  • Attenuation Frequency-Max:

    105 MHz

  • Attenuation@Freq-Max:

    20 dB

  • Average Input Power:

    0.5 W

  • Center or Cutoff Frequency (fo/fc):

    147 MHz

  • Filter Type:

    HIGH PASS FILTER

  • Height:

    2.54 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    3 dB

  • Length:

    8.89 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • VSWR:

    1.2

  • Width:

    8.89 mm

RHP-147+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The RHP-147+ has a high power dissipation, so it's crucial to provide adequate heat sinking. Mini-Circuits recommends using a heat sink with a thermal resistance of less than 10°C/W and ensuring good thermal contact between the amplifier and the heat sink.
  • While the datasheet doesn't specify a maximum input power, Mini-Circuits recommends limiting the input power to -10 dBm to prevent damage to the amplifier. Exceeding this limit may cause permanent damage or affect the amplifier's performance.
  • Yes, the RHP-147+ can be used in a push-pull configuration to achieve higher output power and improved linearity. However, this requires careful design and layout to ensure proper phasing and impedance matching.
  • The typical noise figure of the RHP-147+ is around 3.5 dB, but this can vary depending on the specific application, operating frequency, and temperature. It's essential to consult the datasheet and application notes for more information on noise figure and how to optimize it.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RHP-147+ Overview

Use the download button to access the RHP-147+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RHP-1, or try a keyword search, such as General Purpose Passive Filters

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
