RHP-395+ - Mini-Circuits

Description: Signal Conditioning Lumped LC High Pass Filter, 650 - 2750 MHz

Download RHP-395+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

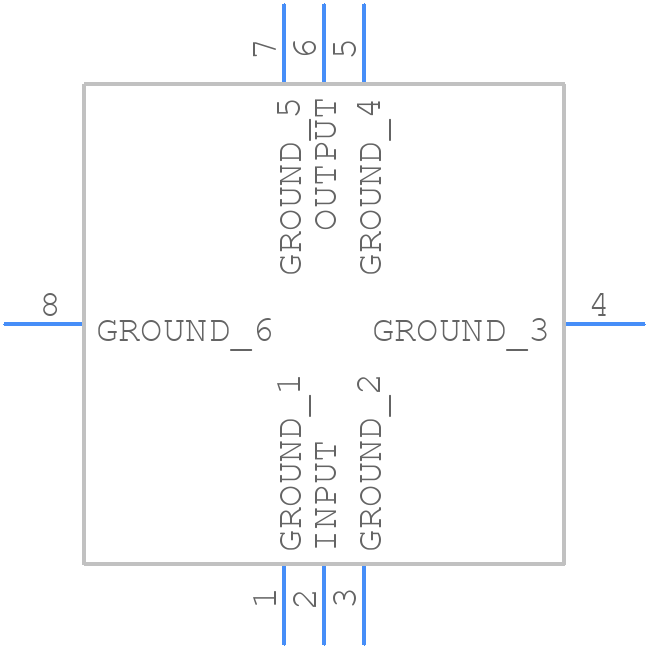

RHP-395+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
RHP-395+ - Mini-Circuits PCB footprint - Other - Other - RHP-395+-2
click to zoom
3D Models
RHP-395+ - Mini-Circuits - 3D model - Other - RHP-395+-2
click to zoom

RHP-395+ Details

  • Manufacturer Part Number:

    RHP-395+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.7

  • Attenuation Frequency-Max:

    290 MHz

  • Attenuation@Freq-Max:

    20 dB

  • Average Input Power:

    0.5 W

  • Center or Cutoff Frequency (fo/fc):

    395 MHz

  • Filter Type:

    HIGH PASS FILTER

  • Height:

    2.54 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    3 dB

  • Length:

    8.89 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • VSWR:

    1.2

  • Width:

    8.89 mm

RHP-395+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The RHP-395+ has a high power dissipation, so it's crucial to provide adequate heat sinking. Mini-Circuits recommends using a heat sink with a thermal resistance of less than 10°C/W and ensuring good thermal contact between the amplifier and the heat sink.
  • While the datasheet doesn't specify a maximum input power, Mini-Circuits recommends limiting the input power to -10 dBm to prevent damage to the amplifier. Exceeding this limit may result in reduced performance, oscillation, or even damage to the device.
  • Yes, the RHP-395+ can be used in a push-pull configuration to achieve higher output power and improved linearity. However, this requires careful design and layout to ensure proper phasing and impedance matching.
  • While the datasheet specifies a typical noise figure of 3.5 dB, the actual noise figure can vary depending on the operating frequency, temperature, and other factors. In practice, the noise figure can be as low as 2.5 dB or as high as 4.5 dB.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RHP-395+ Overview

Use the download button to access the RHP-395+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RHP-3, or try a keyword search, such as General Purpose Passive Filters

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
