RHP-44+ - Mini-Circuits

Description: Metal Shield High Pass Filter -40oC to 85oC

Download RHP-44+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

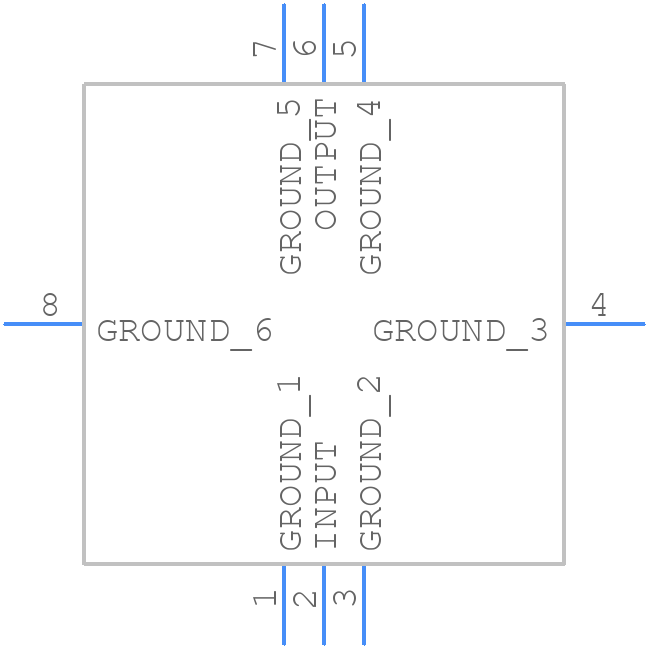

RHP-44+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
RHP-44+ - Mini-Circuits PCB footprint - Other - Other - G P731
click to zoom
3D Models
RHP-44+ - Mini-Circuits - 3D model - Other - G P731
click to zoom

RHP-44+ Details

  • Manufacturer Part Number:

    RHP-44+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6

  • Attenuation Frequency-Max:

    32 MHz

  • Attenuation Frequency-Min:

    25 MHz

  • Attenuation@Freq-Max:

    20 dB

  • Attenuation@Freq-Min:

    40 dB

  • Average Input Power:

    0.5 W

  • Center or Cutoff Frequency (fo/fc):

    44 MHz

  • Filter Type:

    HIGH PASS FILTER

  • Height:

    2.54 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    1 dB

  • Length:

    8.89 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • VSWR:

    1.2

  • Width:

    8.89 mm

RHP-44+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application note AN-60-014, which can be found on their website. It's essential to follow this layout to ensure optimal performance and minimize parasitic effects.
  • The RHP-44+ can generate significant heat during operation. It's crucial to provide adequate heat sinking, such as a thermal pad or a heat sink, to keep the device within its operating temperature range. Ensure good airflow and avoid blocking the airflow around the device.
  • While the datasheet doesn't specify a maximum input power, it's generally recommended to keep the input power below +15 dBm to avoid compression and ensure linear operation. Exceeding this power may lead to reduced performance, distortion, or even damage to the device.
  • The RHP-44+ is designed for 50 ohm systems, but it can be used in non-50 ohm systems with some caveats. Impedance matching networks may be required to ensure optimal performance. Consult with a qualified RF engineer or Mini-Circuits' application support team for guidance on impedance matching and potential performance trade-offs.
  • The typical current consumption of the RHP-44+ is around 120-150 mA, depending on the operating frequency and input power. However, this value can vary depending on the specific application and operating conditions. It's essential to consult the datasheet and application notes for more detailed information.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RHP-44+ Overview

Use the download button to access the RHP-44+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RHP-4, or try a keyword search, such as General Purpose Passive Filters
