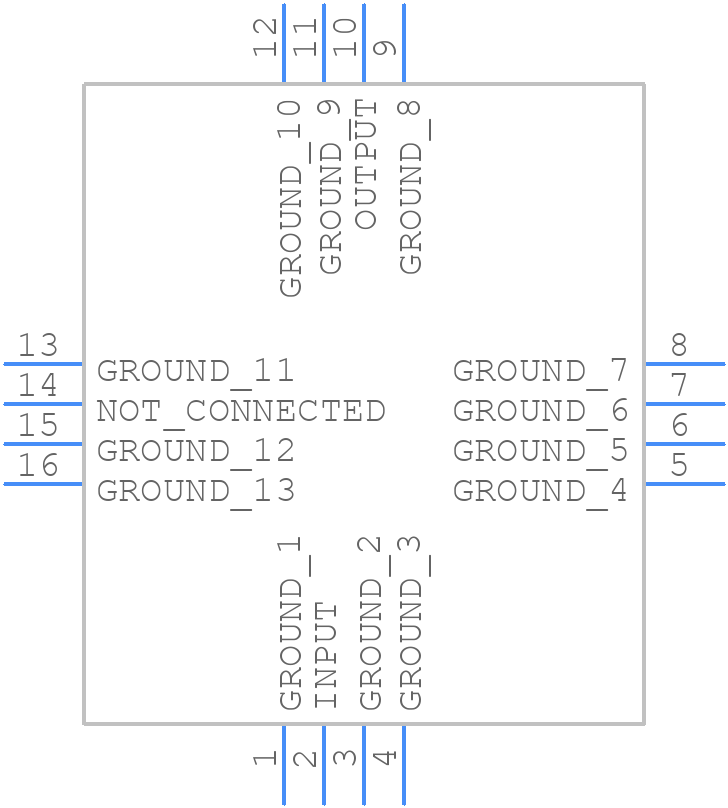

Symbol

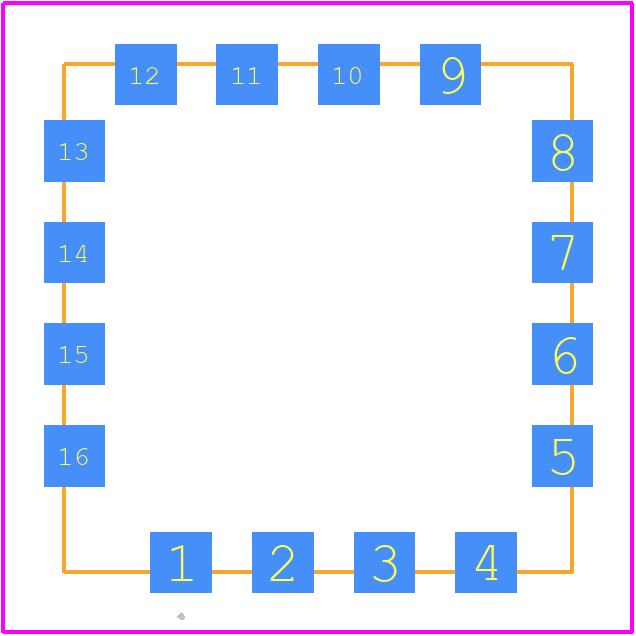

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for RHPF-500+
- Part Number RHPF-500+
- Manufacturer Mini-Circuits
- Pin Count 16
- Part Category Filter
- Package Category Other
- Footprint Name Other - CK605-5
- Released Date Mar 11, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
RHPF-500+ Details
-
Manufacturer Part Number:
RHPF-500+
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Manufacturer:
Mini-Circuits
-
YTEOL:
8
-
Additional Feature:
TR, 7 INCH:100; OTHER REEL QTYS ALSO AVAILABLE
-
Average Input Power:
1 W
-
Center or Cutoff Frequency (fo/fc):
3500 MHz
-
Filter Type:
HIGH PASS FILTER
-
Height:
5 mm
RHPF-500+ Frequently Asked Questions (FAQs)
-
The maximum power handling of the RHPF-500+ is 1 watt, but it's recommended to derate the power to 0.5 watts for continuous operation to ensure reliability and longevity.
-
The RHPF-500+ has a 50 ohm input and output impedance. To impedance match, use a conjugate match technique or use a matching network calculator to design a matching circuit. Mini-Circuits also provides a matching network design guide on their website.
-
The operating temperature range of the RHPF-500+ is -40°C to +85°C. However, the filter's performance may degrade at extreme temperatures, so it's recommended to operate within a narrower range for optimal performance.
-
The RHPF-500+ is not hermetically sealed, so it's not recommended for use in humid environments. If you must use it in a humid environment, ensure that the filter is properly sealed or conformally coated to prevent moisture ingress.
-
The RHPF-500+ has a SMA connector interface. Use a compatible SMA connector on your PCB and ensure that the PCB layout is designed to minimize signal reflections and radiation. You can also use a PCB mount adapter from Mini-Circuits for easy installation.
Trust Checks
Community Provided
System Verified
Community Approved
RHPF-500+ Overview
Use the download button to access the RHPF-500+ schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like RHPF-,
or try a keyword search, such as General Purpose Passive Filters
