RHS7J2D102J1M2H01A - Murata Electronics

Description: 1000 pF ±5% 200V Ceramic Capacitor UNJ Radial

Download RHS7J2D102J1M2H01A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
RHS7J2D102J1M2H01A - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

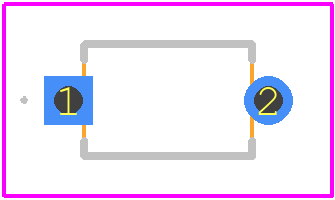

RHS7J2D102J1M2H01A - Murata Electronics PCB footprint - Other - Other - RHS7J2D102J1M2H01A-1
click to zoom
3D Models
RHS7J2D102J1M2H01A - Murata Electronics - 3D model - Other - RHS7J2D102J1M2H01A-1
click to zoom

RHS7J2D102J1M2H01A Details

  • Manufacturer Part Number:

    RHS7J2D102J1M2H01A

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.24.00.60

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    0

  • Capacitance:

    0.001 µF

  • Capacitor Type:

    CERAMIC CAPACITOR

  • Dielectric Material:

    CERAMIC

  • Height:

    2.8 mm

  • JESD-609 Code:

    e2

  • Length:

    4.2 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Multilayer:

    Yes

  • Negative Tolerance:

    5%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    200 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    Radial

  • Packing Method:

    AMMO PACK

  • Positive Tolerance:

    5%

  • Rated (DC) Voltage (URdc):

    200 V

  • Reference Standard:

    AEC-Q200

  • Surface Mount:

    NO

  • Temperature Characteristics Code:

    UNJ

  • Temperature Coefficient:

    -750+/-120ppm/Cel ppm/°C

  • Terminal Finish:

    Tin/Copper (Sn/Cu)

  • Terminal Pitch:

    5 mm

  • Terminal Shape:

    WIRE

  • Width:

    3.5 mm

RHS7J2D102J1M2H01A Frequently Asked Questions (FAQs)

  • Murata recommends a land pattern with a pad size of 2.2mm x 1.3mm, and a spacing of 0.5mm between pads. Refer to the Murata Land Pattern document for more details.
  • The RHS7J2D102J1M2H01A is rated for operation up to 125°C. However, it's recommended to derate the component's performance and consider thermal management strategies for high-temperature applications.
  • Follow the recommended soldering profile and handling procedures outlined in the Murata Soldering and Rework Guidelines document to avoid damaging the component.
  • Yes, the RHS7J2D102J1M2H01A is compatible with lead-free soldering processes, but ensure that the soldering temperature and profile are within the recommended specifications.
  • The typical ESL of the RHS7J2D102J1M2H01A is around 0.5nH to 1.5nH, depending on the frequency and operating conditions. Refer to the datasheet or contact Murata for more information.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RHS7J2D102J1M2H01A Overview

Use the download button to access the RHS7J2D102J1M2H01A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RHS7J, or try a keyword search, such as Ceramic Capacitors

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
