RJH60D3DPP-M0#T2 - Renesas Electronics

Description: Support is limited to customers who have already adopted these products.IGBT product series for Power Factor Correction (PFC), UPS, solar power generation, and welding applications, recommended for 50 to 100 kHz frequencies, and not guaranteed against short circuit.

Download RJH60D3DPP-M0#T2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
RJH60D3DPP-M0#T2 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

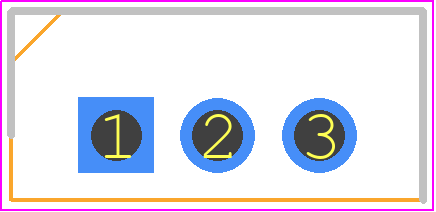

RJH60D3DPP-M0#T2 - Renesas Electronics PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - PRSS0003AF-A
click to zoom
3D Models
RJH60D3DPP-M0#T2 - Renesas Electronics - 3D model - Transistor Outline, Vertical - PRSS0003AF-A
click to zoom

RJH60D3DPP-M0#T2 Details

  • Manufacturer Part Number:

    RJH60D3DPP-M0#T2

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TO-220FL

  • Pin Count:

    3

  • Manufacturer Package Code:

    PRSS0003AF

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    5A002

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Packing Method:

    TUBE
