RJHSE-5481 - Amphenol

Description: Modular Connectors / Ethernet Connectors CAT 5 MODULAR JACK HIGH TEMP

Download RJHSE-5481 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

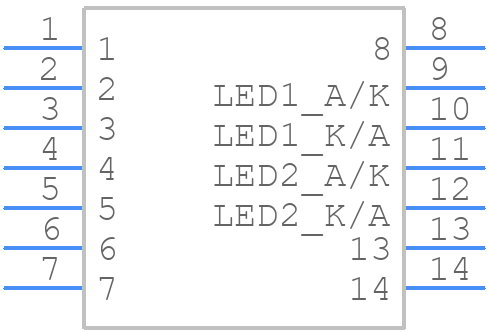

Symbol
RJHSE-5481 - Amphenol - PCB symbol
click to zoom

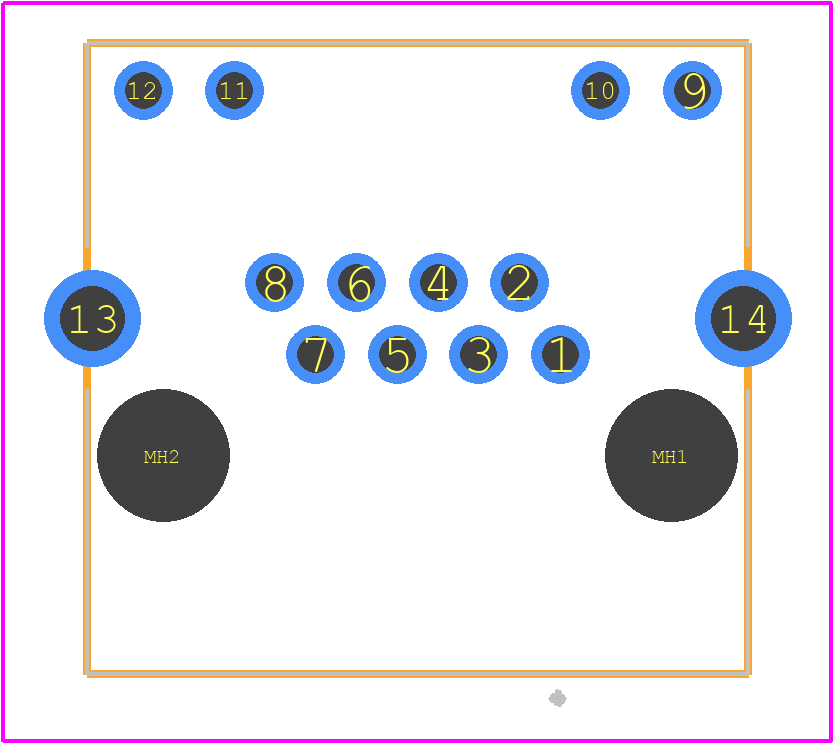

PCB Footprints
RJHSE-5481 - Amphenol PCB footprint - Other - Other - RJHSE-5481
click to zoom
3D Models
RJHSE-5481 - Amphenol - 3D model - Other - RJHSE-5481
click to zoom

RJHSE-5481 Details

  • Manufacturer Part Number:

    RJHSE-5481

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • Country Of Origin:

    India

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    7 Weeks, 3 Days

  • Manufacturer:

    Amphenol Corporation

  • Board Mounting Option:

    PEG

  • Body Breadth:

    0.53 inch

  • Body Depth:

    0.62 inch

  • Body Length:

    0.65 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    RJ CONNECTOR

  • Contact Finish Mating:

    GOLD (50)

  • Contact Finish Termination:

    MATTE TIN OVER NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    PHOSPHOR BRONZE

  • Contact Style:

    TELCOM, MODULAR

  • Insulator Material:

    POLYETHYLENE

  • JESD-609 Code:

    e3

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • PCB Contact Pattern:

    STAGGERED

  • Plating Thickness:

    50u inch

  • Reference Standard:

    UL

  • Shell Finish:

    TIN

  • Shell Material:

    STAINLESS STEEL

  • Terminal Length:

    0.1 inch

  • Terminal Pitch:

    2.032 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

RJHSE-5481 Frequently Asked Questions (FAQs)

  • The recommended torque for the RJHSE-5481 connector is 0.5-1.5 Nm (4.4-13.3 in-lbs) for the jackscrew and 0.2-0.5 Nm (1.8-4.4 in-lbs) for the coupling nut.
  • Yes, the RJHSE-5481 is designed to withstand high-vibration environments. It meets the vibration requirements of MIL-DTL-38999, which includes sinusoidal vibration testing at 10-2000 Hz, 20 G peak acceleration.
  • The RJHSE-5481 is a modified RJ45 connector with a unique keying system. While it's not compatible with standard RJ45 connectors, it's designed to be compatible with other RJHSE-5481 connectors.
  • The RJHSE-5481 operates in the temperature range of -55°C to 125°C (-67°F to 257°F), making it suitable for use in harsh environments.
  • Yes, the RJHSE-5481 connector has a 360-degree EMI shield, which provides excellent electromagnetic interference (EMI) shielding and protection.
