RJHSE-5484 - Amphenol

Description: Modular Connectors / Ethernet Connectors 8P Shielded Mod Jack w/LEDs

Download RJHSE-5484 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

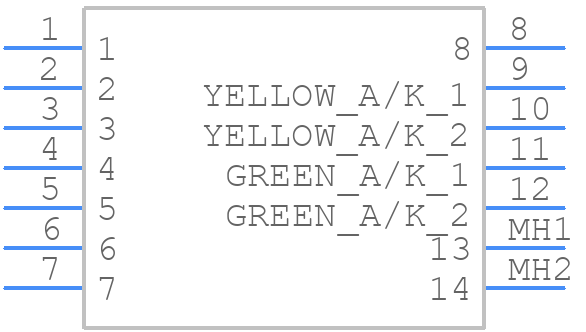

RJHSE-5484 - Amphenol - PCB symbol
click to zoom
PCB Footprints

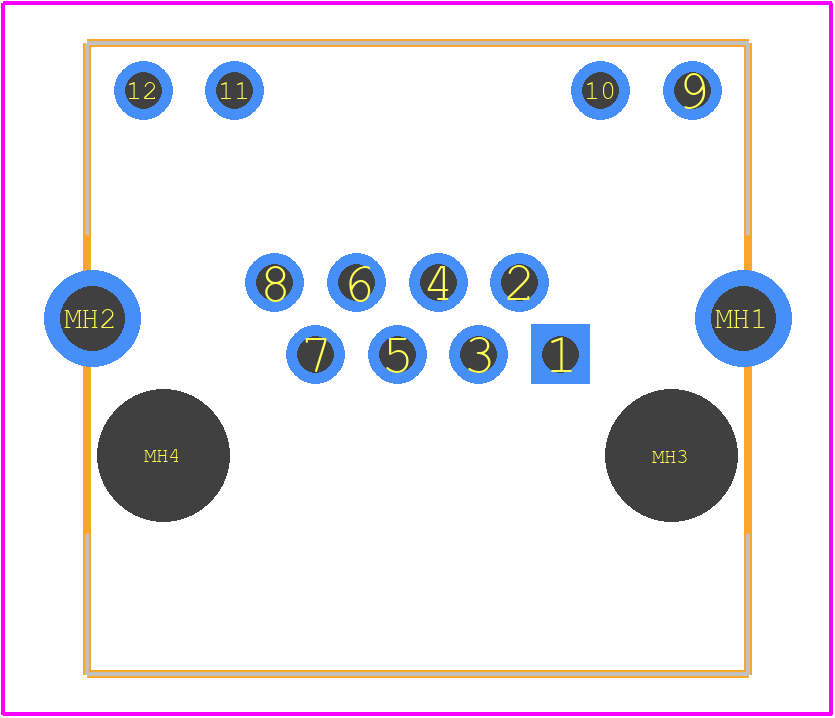

RJHSE-5484 - Amphenol PCB footprint - Other - Other - RJHSE-5484-3
click to zoom
3D Models
RJHSE-5484 - Amphenol - 3D model - Other - RJHSE-5484-3
click to zoom

RJHSE-5484 Details

  • Manufacturer Part Number:

    RJHSE-5484

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • Country Of Origin:

    India

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Amphenol Corporation

  • Board Mounting Option:

    PEG

  • Body Breadth:

    0.53 inch

  • Body Depth:

    0.62 inch

  • Body Length:

    0.65 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    RJ CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    MATTE TIN OVER NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Style:

    TELCOM, MODULAR

  • Insulator Material:

    POLYETHYLENE

  • JESD-609 Code:

    e3

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • PCB Contact Pattern:

    STAGGERED

  • Plating Thickness:

    50u inch

  • Reference Standard:

    UL

  • Shell Finish:

    TIN

  • Shell Material:

    STAINLESS STEEL

  • Terminal Length:

    0.1 inch

  • Terminal Pitch:

    2.032 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

RJHSE-5484 Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the RJHSE-5484 is 0.5-1.5 Nm (4-12 in-lbs). It's essential to follow this torque specification to ensure proper mating and prevent damage to the connector.
  • Yes, the RJHSE-5484 is designed to withstand high-vibration environments. It meets the vibration requirements of IEC 61373 Category 2, which means it can operate in environments with vibrations up to 15 Hz to 2000 Hz, 10 G peak acceleration.
  • Yes, the RJHSE-5484 is designed to support Cat 6A Ethernet cables. It meets the TIA/EIA-568-C.2-1 standard for Category 6A connectors, ensuring reliable transmission of high-speed Ethernet signals.
  • The RJHSE-5484 has an operating temperature range of -40°C to 85°C (-40°F to 185°F). It's suitable for use in a wide range of applications, from industrial to commercial and residential environments.
  • Yes, the RJHSE-5484 is designed to be used in outdoor and harsh environments. It has an IP67 rating, which means it's protected against dust and water ingress, making it suitable for use in industrial, transportation, and outdoor applications.
