RJSAE-5F80-02 - Amphenol

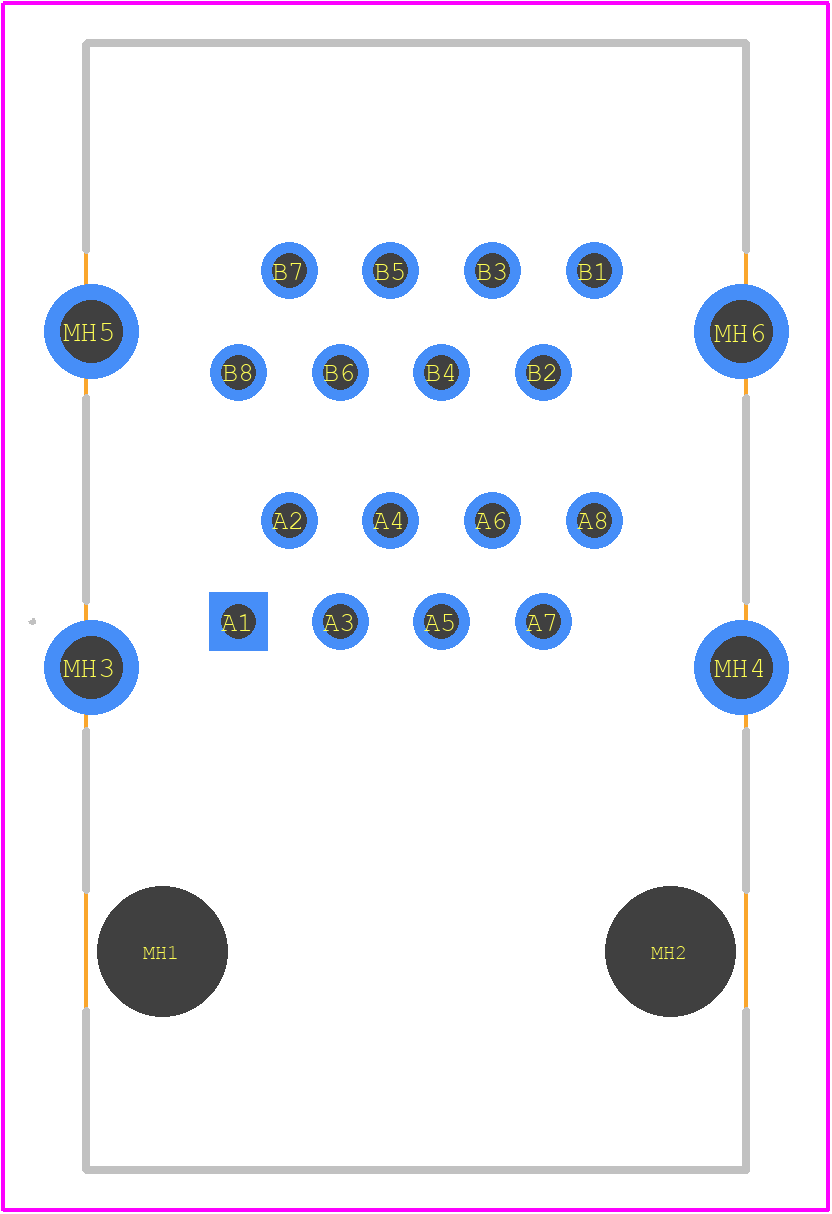

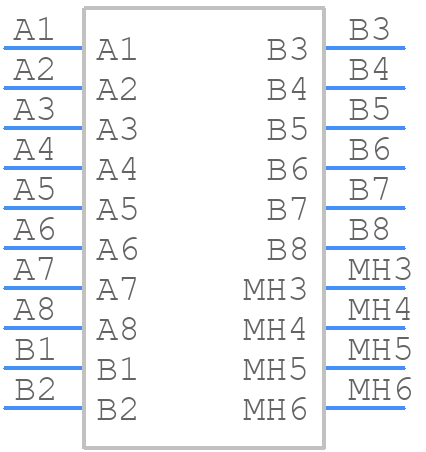

RJSAE-5F80-02 Details

• Manufacturer Part Number:

  RJSAE-5F80-02

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Reach Compliance Code:

  Compliant

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Manufacturer:

  Amphenol Corporation

• YTEOL:

  8

• Additional Feature:

  SHIELDED

• Board Mounting Option:

  SPLIT BOARD LOCK

• Body Breadth:

  1 inch

• Body Depth:

  1.108 inch

• Body Length:

  0.65 inch

• Body/Shell Style:

  JACK

• Connector Type:

  RJ CONNECTOR

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Gender:

  FEMALE

• Contact Material:

  NOT SPECIFIED

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  20 mΩ

• Contact Style:

  MODULAR JACK

• Dielectric Withstanding Voltage:

  1000VAC V

• Durability:

  750 Cycles

• Empty Shell:

  NO

• Filter Feature:

  NO

• Insulation Resistance:

  500000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  POLYETHYLENE

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of PCB Rows:

  2+2

• Number of Ports:

  2

• Number of Rows Loaded:

  1+1

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  2.54/3.69 mm

• Plating Thickness:

  50u inch

• Polarization Key:

  POLARIZED HOUSING

• Rated Current (Signal):

  1.5 A

• Reference Standard:

  TIA; UL

• Shell Finish:

  NICKEL

• Shell Material:

  COPPER ALLOY

• Terminal Length:

  0.1 inch

• Terminal Pitch:

  2.54 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  16

• UL Flammability Code:

  94V-0
