The recommended land pattern for the RLF12545T-7R8N5R4-PF can be found in the TDK Corporation's application note or on their website. It typically includes a rectangular pad with a size of around 3.5mm x 2.5mm, with a 1.5mm x 1.5mm thermal pad in the center.
The RLF12545T-7R8N5R4-PF has a maximum operating temperature of 125°C. To ensure reliable operation, it's essential to provide adequate thermal relief, such as a thermal pad or via, to dissipate heat. Additionally, consider the PCB's thermal conductivity and the inductor's proximity to heat sources.
The self-resonant frequency (SRF) of the RLF12545T-7R8N5R4-PF is not explicitly stated in the datasheet. However, according to TDK Corporation's application notes, the SRF for similar inductors in the RLF series is typically in the range of 100-200 MHz. It's recommended to consult with TDK Corporation or perform your own measurements to determine the SRF for your specific application.
The RLF12545T-7R8N5R4-PF is designed for high-frequency applications, with a rated frequency range of up to 100 MHz. However, it's essential to consider the inductor's impedance characteristics, core losses, and self-resonant frequency when designing for high-frequency applications.
To ensure the reliability and longevity of the RLF12545T-7R8N5R4-PF, follow proper storage and handling procedures, avoid excessive mechanical stress, and operate the inductor within its specified temperature and current ratings. Additionally, consider implementing a robust PCB design, using a suitable soldering process, and performing thorough testing and inspection.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RLF12545T-7R8N5R4-PF Overview

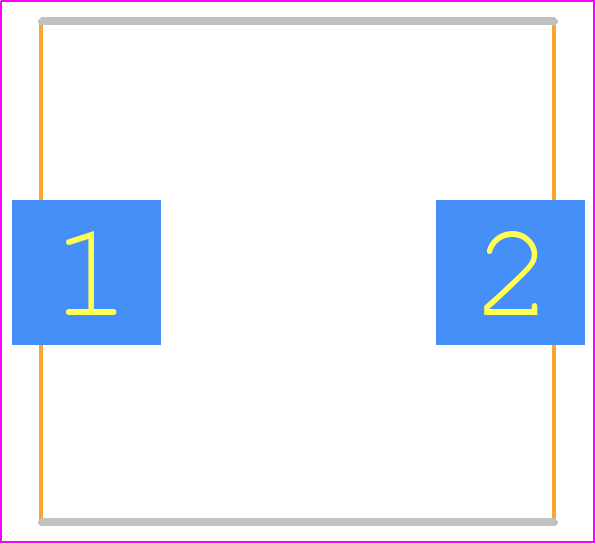

Use the download button to access the RLF12545T-7R8N5R4-PF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RLF12,
or try a keyword search, such as Fixed Inductors
