RLM-23+ - Mini-Circuits

Description: RF Wireless Misc LIMITER / SURF MOUNT / RoHS

Download RLM-23+ Model

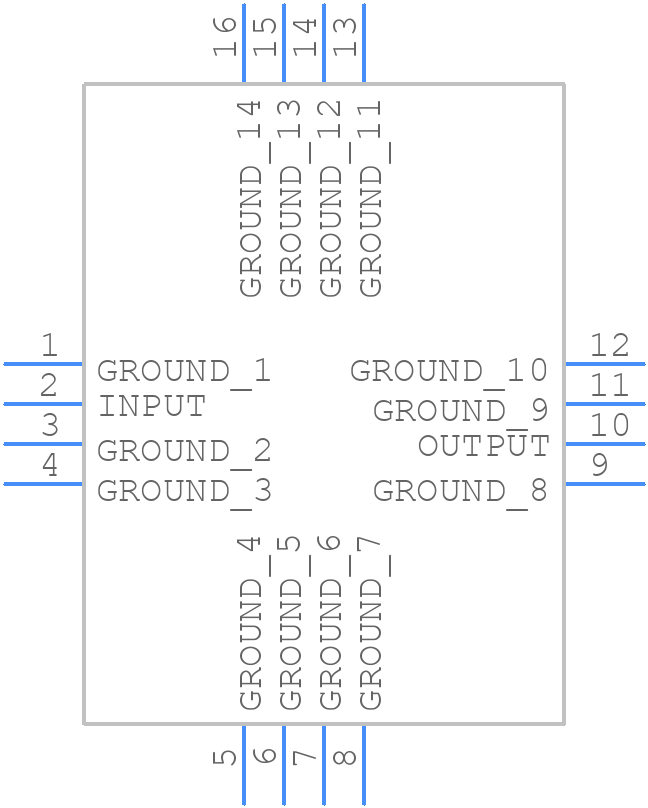

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

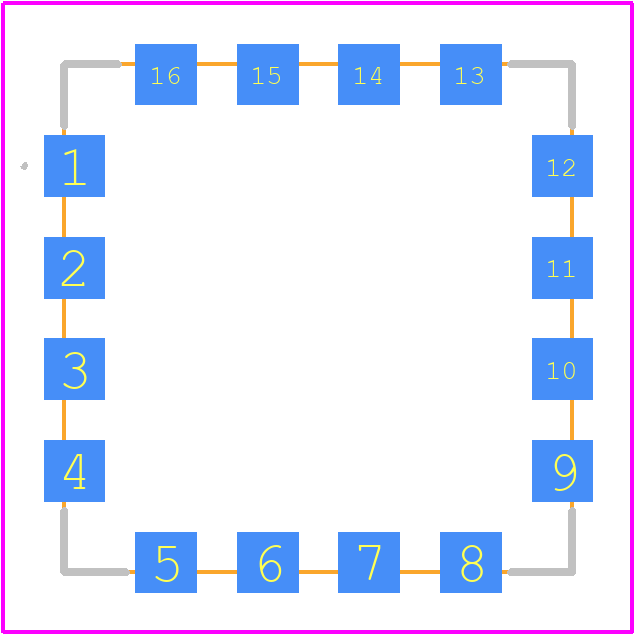

RLM-23+ - Mini-Circuits PCB footprint - Other - Other - RLM-23+-1
click to zoom
3D Models
RLM-23+ - Mini-Circuits  - 3D model - Other - RLM-23+-1
click to zoom

RLM-23+ Details

  • Manufacturer Part Number:

    RLM-23+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • Additional Feature:

    HIGH RELIABILITY

  • Adjustability:

    FIXED

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    31.76 dBm

  • Input Power-Min (CW):

    5 dBm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Frequency-Max:

    2050 MHz

  • Operating Frequency-Min:

    950 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Equivalence Code:

    LCC16,.5SQ,100

  • RF/Microwave Device Type:

    LIMITER

  • Surface Mount:

    YES

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier

  • VSWR-Max:

    1.6

RLM-23+ Frequently Asked Questions (FAQs)

  • Mini-Circuits recommends a 50-ohm microstrip line with a width of 0.035 inches (0.89 mm) and a thickness of 0.032 inches (0.81 mm) for optimal performance. Additionally, it's recommended to keep the component away from any nearby metal objects or vias to minimize parasitic effects.
  • While the RLM-23+ is designed for 50-ohm systems, it can be used in non-50-ohm systems with some performance degradation. However, the device's impedance mismatch will affect its performance, and the user should be prepared for potential issues with return loss, insertion loss, and power handling.
  • The RLM-23+ is rated for operation from -40°C to +85°C. However, the device's performance may degrade at higher temperatures, and the user should consider derating the power handling and other specifications accordingly.
  • While the RLM-23+ is a high-quality component, it is not specifically designed for high-reliability or space-grade applications. Users should consult with Mini-Circuits or a qualified reliability engineer to determine the suitability of the RLM-23+ for such applications.
  • The lead time for delivery of the RLM-23+ can vary depending on the quantity, packaging, and other factors. Typically, Mini-Circuits quotes a lead time of 2-4 weeks for standard orders, but this can be shorter or longer depending on the specific requirements.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RLM-23+ Overview

Use the download button to access the RLM-23+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RLM-2, or try a keyword search, such as RF/Microwave Limiters

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
