RLP-137+ - Mini-Circuits

Description: Signal Conditioning LOW PASS FLTR / SURF MT / RoHS

Download RLP-137+ Model

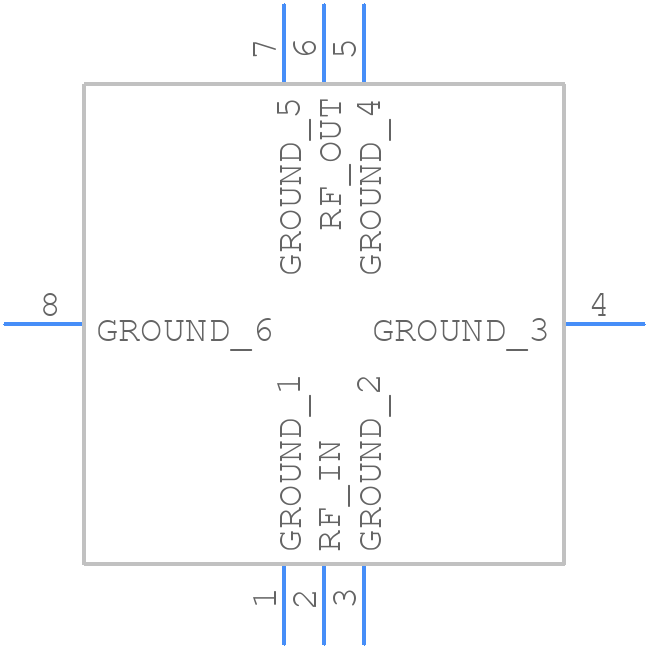

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
RLP-137+ - Mini-Circuits PCB footprint - Other - Other - RLP-137+-1
click to zoom
3D Models
RLP-137+ - Mini-Circuits  - 3D model - Other - RLP-137+-1
click to zoom

RLP-137+ Details

  • Manufacturer Part Number:

    RLP-137+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.94

  • Attenuation Frequency-Max:

    1000 MHz

  • Attenuation Frequency-Min:

    190 MHz

  • Attenuation@Freq-Max:

    40 dB

  • Attenuation@Freq-Min:

    20 dB

  • Average Input Power:

    0.5 W

  • Center or Cutoff Frequency (fo/fc):

    150 MHz

  • Filter Type:

    LOW PASS FILTER

  • Height:

    2.54 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    3 dB

  • Length:

    8.89 mm

  • Mounting Type:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • VSWR:

    1.1

  • Width:

    8.89 mm

RLP-137+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The RLP-137+ has a 50 ohm input and output impedance. To impedance match, use a pi-network or a T-network with resistors and capacitors to match the impedance of your system to 50 ohms. You can use online impedance matching tools or consult with a RF engineer for assistance.
  • The maximum power handling of the RLP-137+ is 1W. Exceeding this power limit can cause damage to the device. Make sure to use an attenuator or a limiter to prevent excessive power from reaching the device.
  • The RLP-137+ is rated for operation up to 65°C. While it can tolerate short-term excursions up to 85°C, prolonged exposure to high temperatures can affect its performance and reliability. If you need to operate in a high-temperature environment, consider using a heat sink or a thermally-controlled environment.
  • To troubleshoot issues with the RLP-137+, start by checking the power supply voltage, input power level, and output impedance matching. Use a spectrum analyzer or a network analyzer to measure the device's performance. Consult the datasheet and application notes for troubleshooting guides and contact Mini-Circuits' technical support if needed.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RLP-137+ Overview

Use the download button to access the RLP-137+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RLP-1, or try a keyword search, such as General Purpose Passive Filters

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
