Part Image

RLP-30+ - Mini-Circuits

Description: Signal Conditioning LOW PASS FLTR / SURF MT / RoHS

Download RLP-30+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

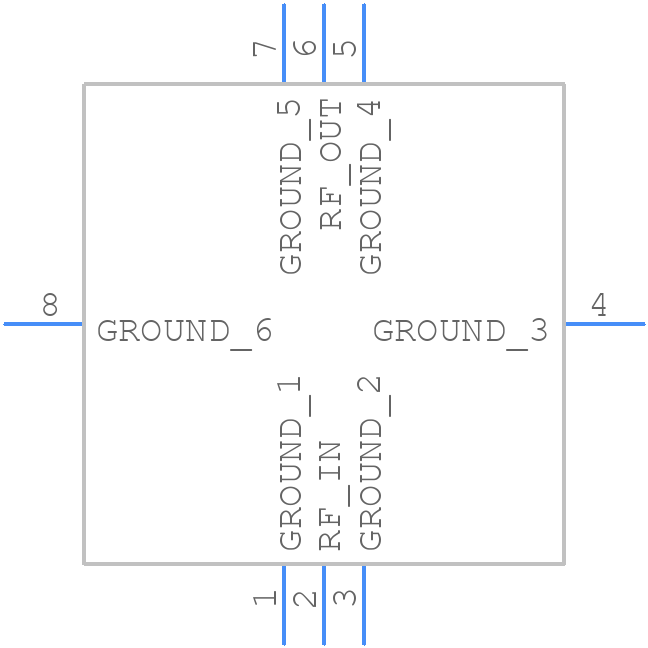

Symbol
RLP-30+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
RLP-30+ - Mini-Circuits PCB footprint - Other - Other - CASE STYLE: GP1212
click to zoom
3D Models
RLP-30+ - Mini-Circuits - 3D model - Other - CASE STYLE: GP1212
click to zoom

RLP-30+ Details

  • Manufacturer Part Number:

    RLP-30+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Attenuation Frequency-Max:

    3000 MHz

  • Attenuation Frequency-Min:

    47 MHz

  • Attenuation@Freq-Max:

    40 dB

  • Attenuation@Freq-Min:

    20 dB

  • Average Input Power:

    0.5 W

  • Center or Cutoff Frequency (fo/fc):

    37 MHz

  • Filter Type:

    LOW PASS FILTER

  • Height:

    3.81 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    2 dB

  • Length:

    8.89 mm

  • Mounting Type:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • VSWR:

    1.15

  • Width:

    8.89 mm

RLP-30+ Frequently Asked Questions (FAQs)

  • The maximum power handling of the RLP-30+ is 1 watt. Exceeding this power limit can cause damage to the device.
  • Yes, the RLP-30+ is designed to work in a 50 ohm system. However, it's recommended to use a 75 ohm system for optimal performance.
  • The operating temperature range of the RLP-30+ is -40°C to +85°C. Operating outside this range can affect the device's performance and reliability.
  • The RLP-30+ is not designed for outdoor use and should be used in a controlled environment. If outdoor use is required, additional protection and shielding may be necessary.
  • The RLP-30+ is designed to withstand moderate vibration levels. However, extreme vibration can affect the device's performance and reliability. Additional testing and evaluation may be necessary for high-vibration applications.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RLP-30+ Overview

Use the download button to access the RLP-30+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RLP-3, or try a keyword search, such as General Purpose Passive Filters

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
