- Part Number RM607012
- Manufacturer TE Connectivity
- Pin Count 8
- Part Category Relay or Contactor
- Package Category Other
- Footprint Name Other - RM607012
- Released Date Aug 6, 2018
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
RM607012 Details
-
Manufacturer Part Number:
RM607012
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
ROHS COMPLIANT
-
ECCN Code:
EAR99
-
Manufacturer:
TE Connectivity
-
YTEOL:
0
-
Body Breadth:
35.5 mm
-
Body Height:
55.5 mm
-
Body Length or Diameter:
38.5 mm
-
Coil Current(DC)-Max:
0.133 A
RM607012 Frequently Asked Questions (FAQs)
-
The recommended torque for the screw terminals of RM607012 is 0.5 Nm to 1.5 Nm, depending on the wire size and type.
-
Yes, RM607012 is designed to withstand high-vibration environments. It meets the IEC 61373 Category 1, Class B vibration standard, making it suitable for use in applications with high vibration levels.
-
While the datasheet specifies AWG 24-16 wire sizes, RM607012 can accommodate other wire sizes with the use of adapters or specialized terminals. However, it's essential to consult with TE Connectivity or a qualified engineer to ensure compatibility and proper installation.
-
The operating temperature range for RM607012 is -40°C to 125°C, making it suitable for use in a wide range of applications, including those in extreme temperature environments.
-
RM607012 has a rating of IP20, which means it provides some protection against solid objects but is not sealed against moisture. While it can withstand some humidity, it's not recommended for use in wet or submerged environments without additional protection or sealing.
Trust Checks
Expert Contribution
System Verified
Community Approved
RM607012 Overview

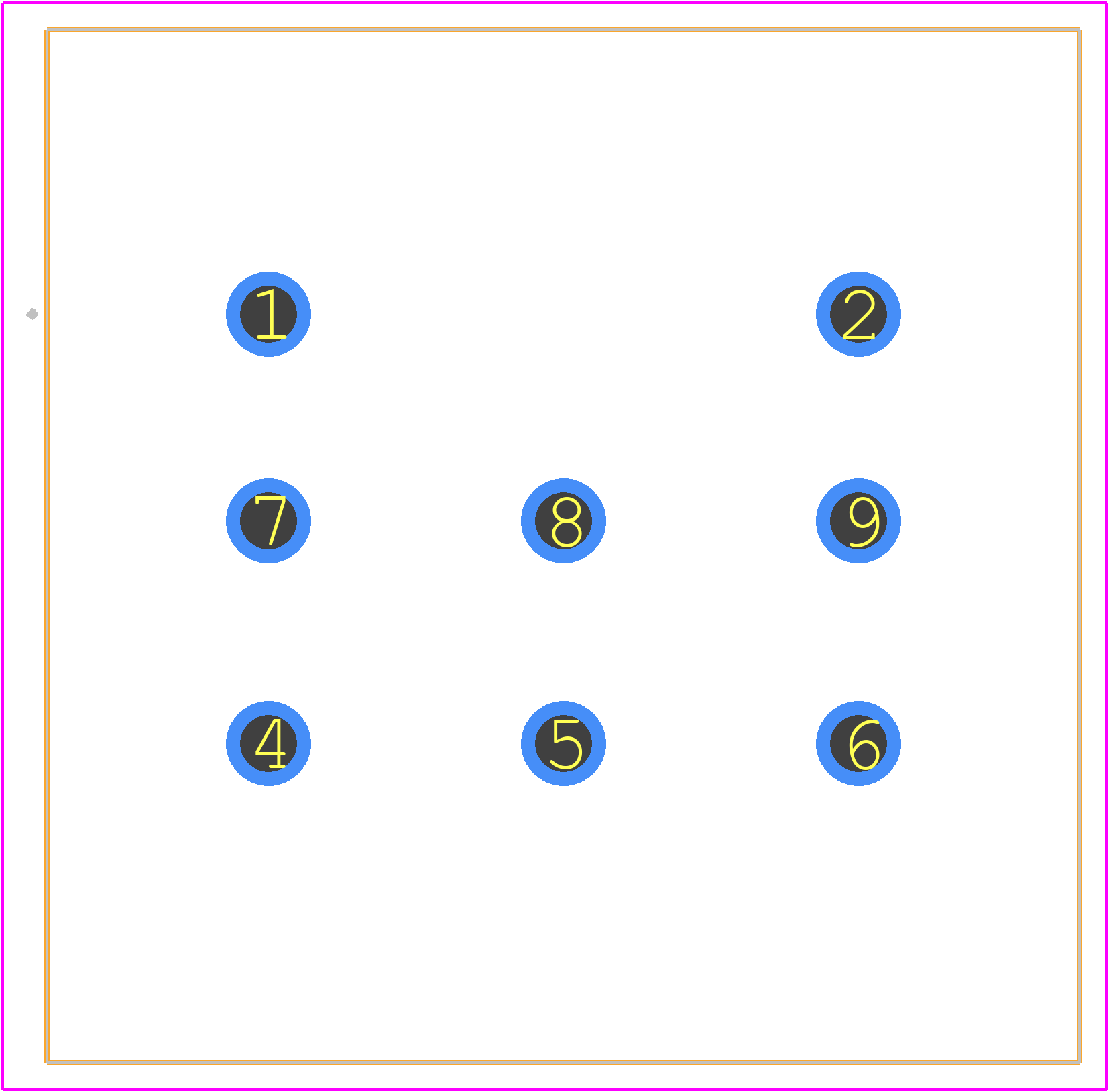

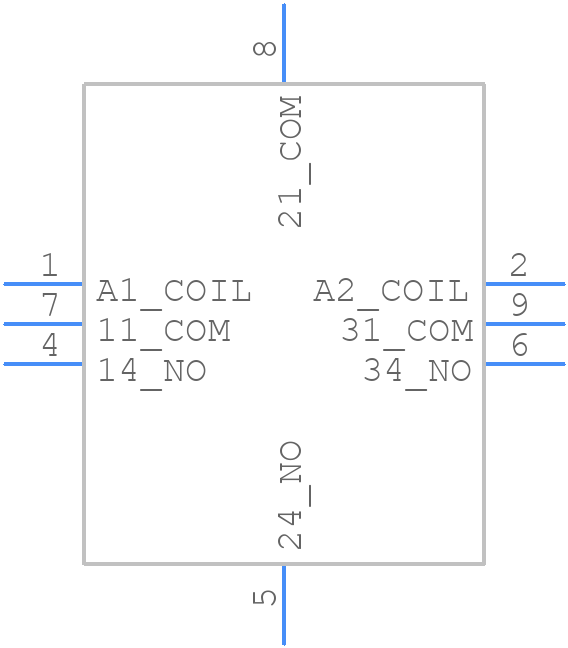

Use the download button to access the RM607012 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RM607,
or try a keyword search, such as Power/Signal Relays
