RMK-5-51+ - Mini-Circuits

Description: Signal Conditioning 5X SMT Multiplier, Output Freq 37.5 - 52.5 MHz

Download RMK-5-51+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

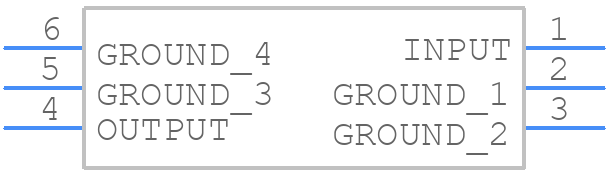

Symbol
RMK-5-51+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
RMK-5-51+ - Mini-Circuits PCB footprint - Other - Other - TT1224_2025-2.1
click to zoom
3D Models
RMK-5-51+ - Mini-Circuits - 3D model - Other - TT1224_2025-2.1
click to zoom

RMK-5-51+ Details

  • Manufacturer Part Number:

    RMK-5-51+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    India, USA

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Conversion Loss-Max:

    26 dB

  • Input Power-Max (CW):

    20 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    10.5 MHz

  • Operating Frequency-Min:

    7.5 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Equivalence Code:

    DILCC6,.25

  • RF/Microwave Device Type:

    FREQUENCY PENTA

  • Surface Mount:

    YES

RMK-5-51+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The RMK-5-51+ is a high-power device, and proper thermal management is crucial. Ensure good airflow around the device, and consider using a heat sink or thermal pad to dissipate heat. The device's thermal resistance (θjc) is specified in the datasheet.
  • While the datasheet specifies an operating temperature range of -40°C to +85°C, it's essential to note that the device's performance may degrade at higher temperatures. Consult with Mini-Circuits or refer to their application notes for more information on temperature-related performance characteristics.
  • While the RMK-5-51+ is primarily designed for linear applications, it can be used in switching applications with proper design considerations. However, the device's switching characteristics, such as rise and fall times, may not be specified in the datasheet. Consult with Mini-Circuits or refer to their application notes for more information.
  • The RMK-5-51+ is designed to operate with a specific input and output impedance. Refer to the datasheet for the recommended impedance values, and ensure that your circuit design matches these values to achieve optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RMK-5-51+ Overview

Use the download button to access the RMK-5-51+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RMK-5, or try a keyword search, such as RF/Microwave Frequency Multipliers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
