RN122-4-02-3M3 footprint, schematic symbol and 3D model by Schaffner

Symbol

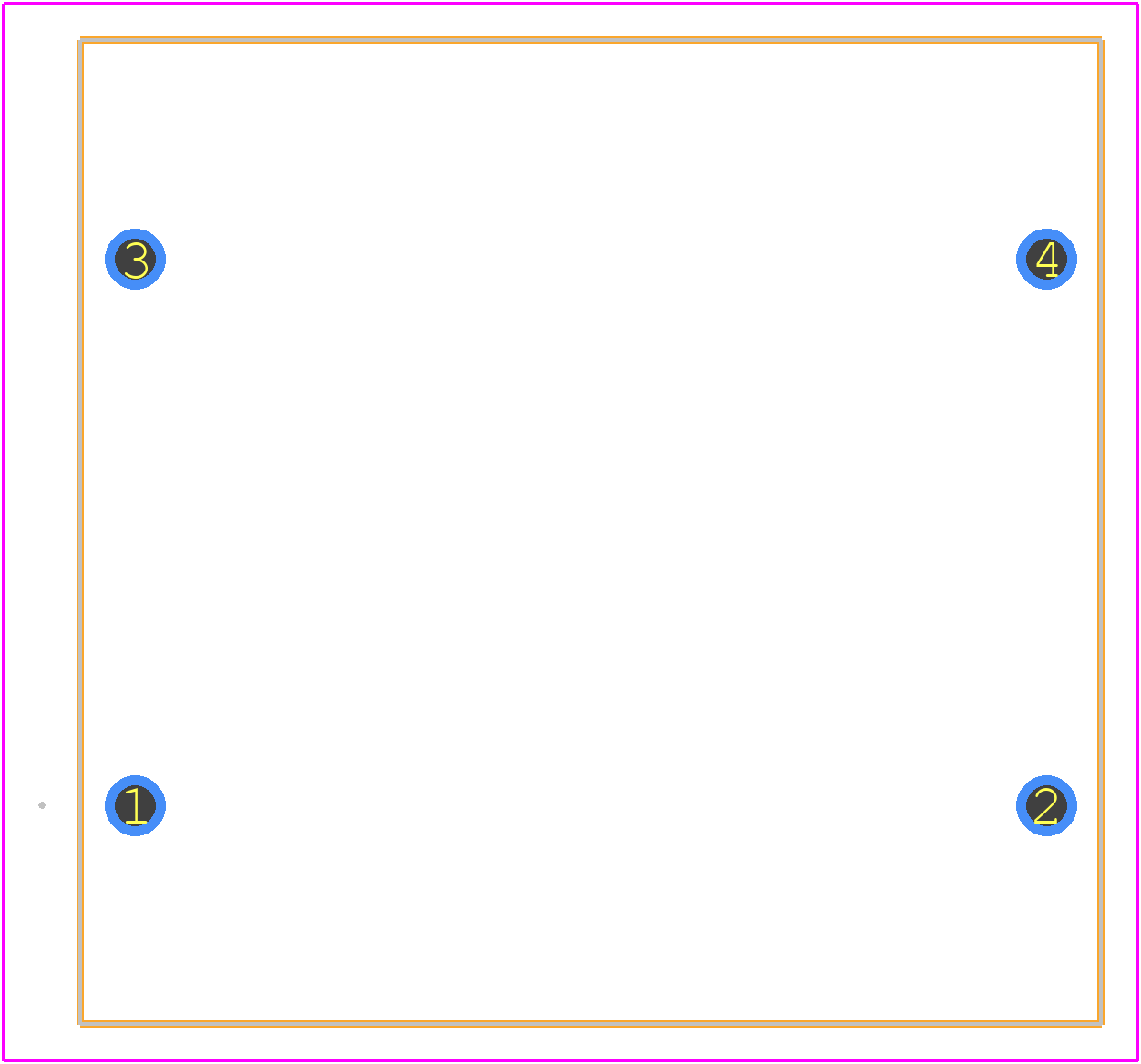

PCB Footprints

3D Models

RN122-4-02-3M3 Details

Schaffner recommends a symmetrical layout with the filter placed close to the power entry point, and the input and output lines should be routed separately to minimize electromagnetic interference (EMI).
The RN122-4-02-03M3 is rated for operation up to 80°C, but derating may be necessary for higher temperatures. Consult Schaffner's application notes for specific guidance.
The RN122-4-02-03M3 meets various safety certifications, including UL, cUL, and ENEC. Ensure that your application meets the required safety standards by consulting the datasheet and relevant certification documents.
Schaffner recommends using the provided screws and washers to secure the filter to the PCB or a metal chassis, ensuring a good electrical connection and mechanical stability.
The RN122-4-02-03M3 is designed to withstand moderate vibration, but extreme vibration may affect its performance. Consult Schaffner's application notes for specific guidance on vibration testing and mitigation.

Expert Contribution

System Verified

Community Approved

Use the download button to access the RN122-4-02-3M3 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like RN122, or try a keyword search, such as Mains Filters
